cRIO-9054
$3,779.00
Item details
Number of Ethernet Ports on Controller: 2
Slot Count: 4
Conformal Coated: No
FPGA: Artix-7 100T
GigE Vision Support: Yes
Operating Temperature Range: -20 °C to 55 °C
Processor Core: 1.33 GHz Dual Core Intel Atom
RAM Size: 2 GB
Hard Drive Memory Size: 4 GB
Programming Method: LabVIEW FPGA, NI-DAQmx
TSN Enabled: Deterministic Communication, Synchronization
14
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

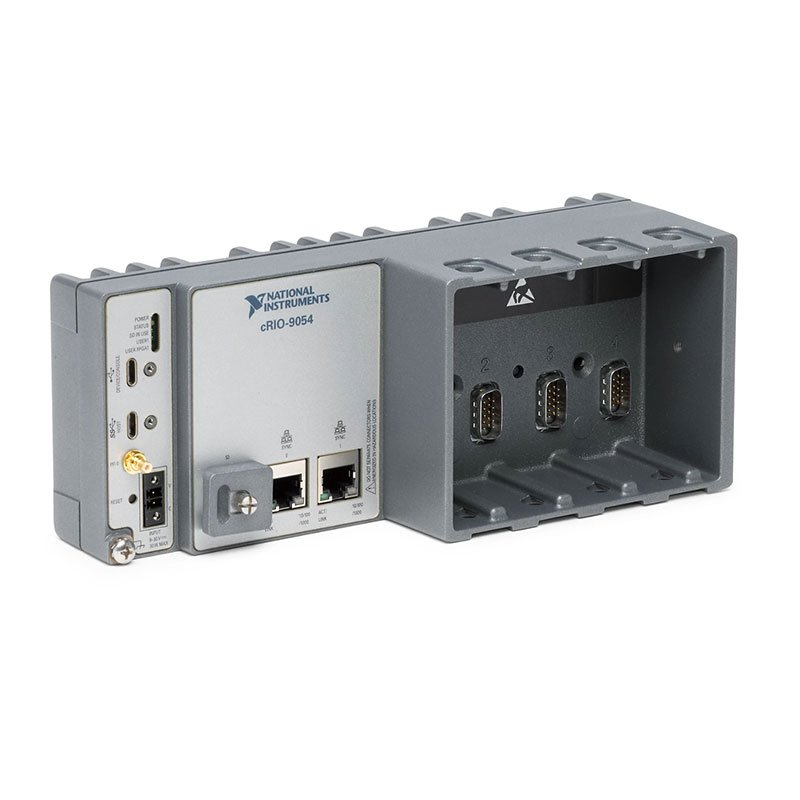

cRIO-9054 Controller
1.33 GHz Dual-Core CPU, 2 GB DRAM, 4 GB Storage, -20 °C to 55 °C, Artix 7 100T FPGA, 4-Slot CompactRIO Controller
The cRIO-9054 is a rugged, deployable controller for data acquisition and control applications. It offers Intel Atom dual-core processing, an Artix-7 FPGA, and four slots for C Series modules. It runs the NI Linux Real-Time operating system with access to the I/O through NI-DAQmx drivers or with the LabVIEW FPGA module. The controller provides precise, synchronized timing and deterministic communications over the network using TSN, ideal for distributed measurements and control. This controller offers two Gigabit Ethernet ports, one USB 3.1 host port, one USB 2.0 device port, a trigger line, and a μSD card slot for storing data locally. The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a worldwide basis.
Part Number(s): 786425-01
Specification
Overview
| Brand |
National Instruments |
|---|
