PXIe-4464
$8,706.00
Item details
Maximum Number of Differential Analog Input Channels: 4
Number of Analog Output Channels: –
Bus Connector: PXI Express
Analog Input Coupling: AC/DC
Number of Gain Settings: 6
Highpass Filter Cut-Off Frequency: 0.72 Hz
Maximum Sample Rate: 204.8 kS/s
DSA Dynamic Range: 119 dB
14
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

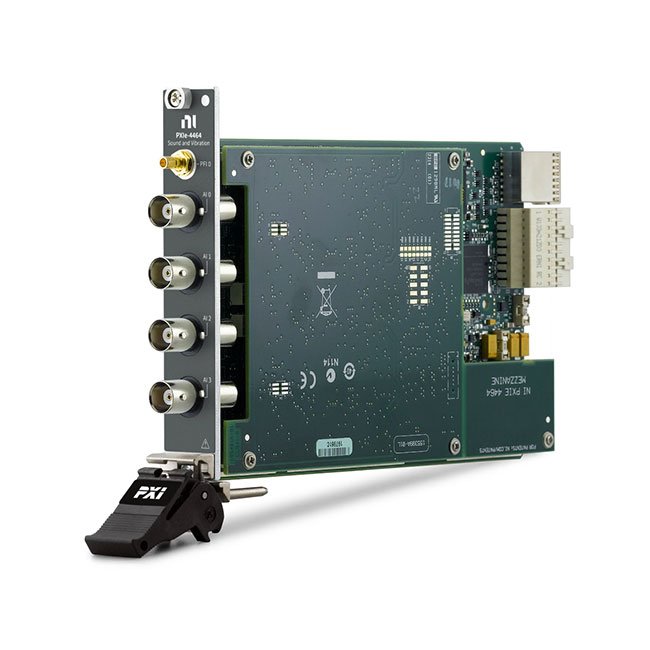

NI PXIe-4464 Sound and Vibration Module
204.8 kS/s, 119 dB, 6 Gains, AC/DC-Coupled, 4-Input PXI Sound and Vibration Module
The PXI‑4464 delivers simultaneous sampling on all channels. In addition, the PXI‑4464 includes built-in antialiasing filters that automatically adjust to your sampling rate, six software-selectable input gains ranges, and TEDS smart sensor support for error-free setup. The IEPE excitation circuit can deliver current for high-power sensors and strong data integrity over long sensor cable runs.
Part Number(s): 783087-02 | 783087-01
Specification
Overview
| Brand |
National Instruments |
|---|
