PXIe-6345
$3,870.00
Item details
Maximum Number of Single-Ended Analog Input Channels: 80
Analog Input Resolution: 16 bits
Maximum Sample Rate: 500 kS/s
Number of Analog Output Channels: 2
Maximum Update Rate: 2.86 MS/s
Bus Connector: PXI Express
Number of Bidirectional Digital Channels: 24
Electrical Signal Measured: Voltage
Analog Input FIFO Buffer Size: 4095 samples
Maximum Number of Differential Analog Input Channels: 40
Current Flow Direction: –
Simultaneous Sampling: No
Analog Input Absolute Accuracy: 1520 μV
Number of Counters/Timers: 4
17
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

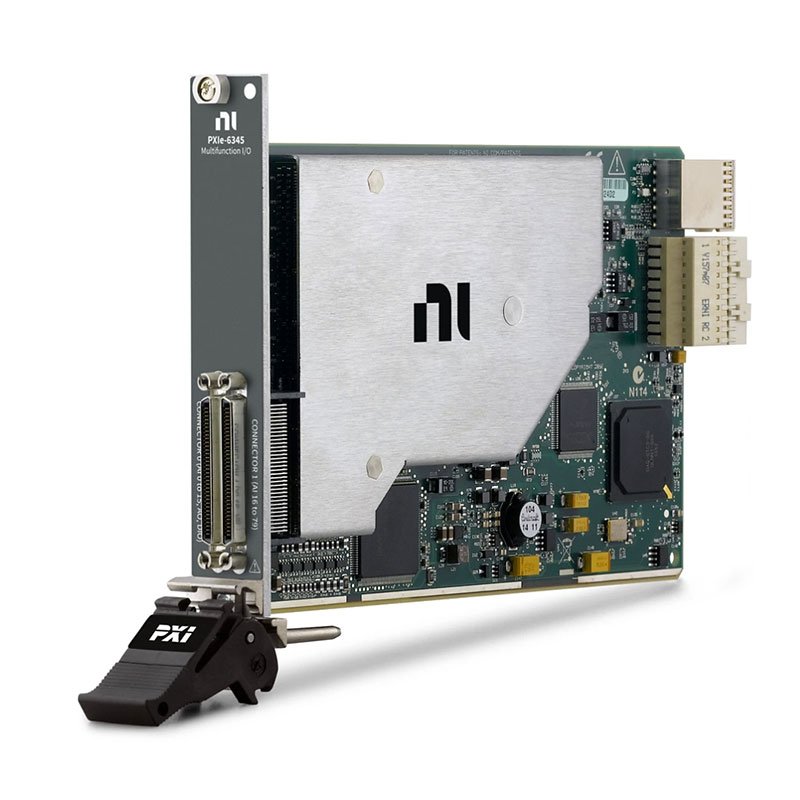

NI PXIe-6345 Multifunction I/O Module
PXIe, 80 AI (16-Bit, 500 kS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module
The PXIe‑6345 offers analog I/O, digital I/O, and four 32‑bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe‑6345 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.
Part Number(s): 783631-01
