PXI-2576

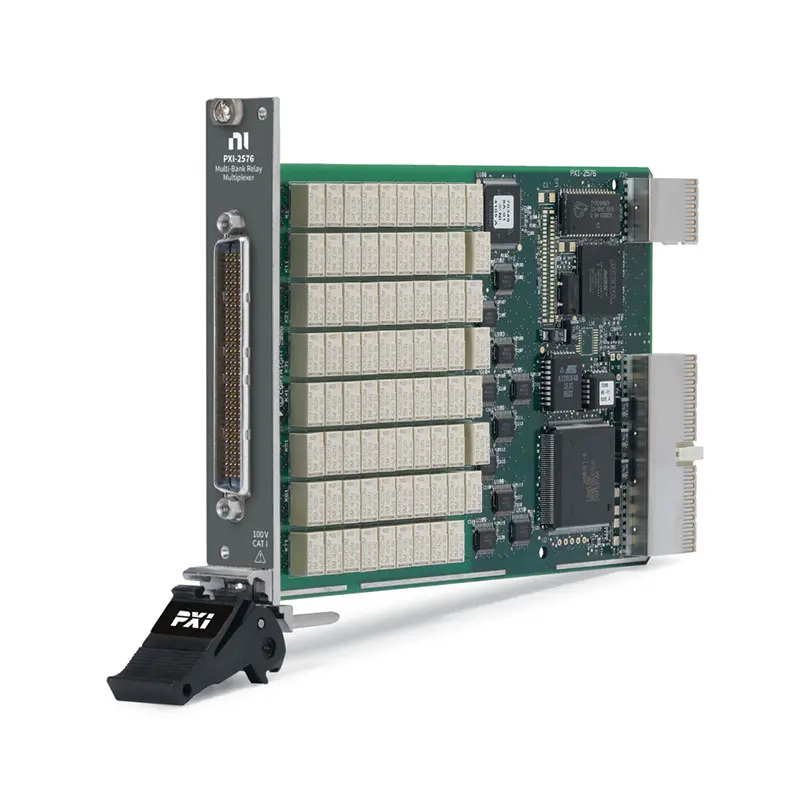

The PXI‑2576 is a multibank PXI multiplexer switch module with 16 banks of 4×1 2‑wire multiplexers. With the flexible architecture of the PXI‐2576, you can configure it in a variety of topologies that make it suitable for parallel measurement operations requiring low‐channel counts, or you can combine all multiplexer banks to form a single high‐channel‐count multiplexer featuring 64 2‑wire channels. It also features onboard relay counting for relay monitoring and deterministic operation with hardware triggers to improve test throughput.

Applications and Use Cases of PXI-2576

The PXI-2576 Relay Switch Matrix Module is a PXI-based high-density relay switch matrix module designed for automated signal routing, multiplexing, and scalable switching systems. It provides flexible matrix switching architecture and reliable relay operation, making it ideal for automated test equipment (ATE), multi-channel measurements, and signal distribution applications.

1. High-Density Matrix Signal Routing
PXI-2576 enables flexible routing between multiple instruments and DUTs through a configurable matrix switching architecture.

2. Automated Test Equipment (ATE)
Widely used in ATE systems for automated switching of test paths, signal lines, and measurement channels.

3. Multiplexed Measurement Systems
Allows multiple signals to share common test instruments, reducing hardware requirements and system complexity.

4. Multi-Channel Device Testing
Supports sequential and parallel testing of multiple DUTs within one automated platform.

5. Industrial & Production Testing
Applied in manufacturing environments for high-throughput electrical testing and validation.

6. Research & Laboratory Applications
Used in labs for flexible signal routing and reconfigurable measurement setups.

7. Data Acquisition & Instrument Sharing
Enables efficient sharing of DAQ and measurement instruments across multiple channels or devices.
