PXI-6255

The PXI-6255 offers analog I/O, correlated digital I/O, two 32-bit counters/timers, and analog and digital triggering. The device delivers low-cost, reliable DAQ capabilities in a wide range of applications from simple applications in laboratory automation, research, design verification/test, and manufacturing test. You can add sensor and high-voltage measurement capability to your device with SCC or SCXI signal conditioning modules. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

Applications and Use Cases of PXI-6255

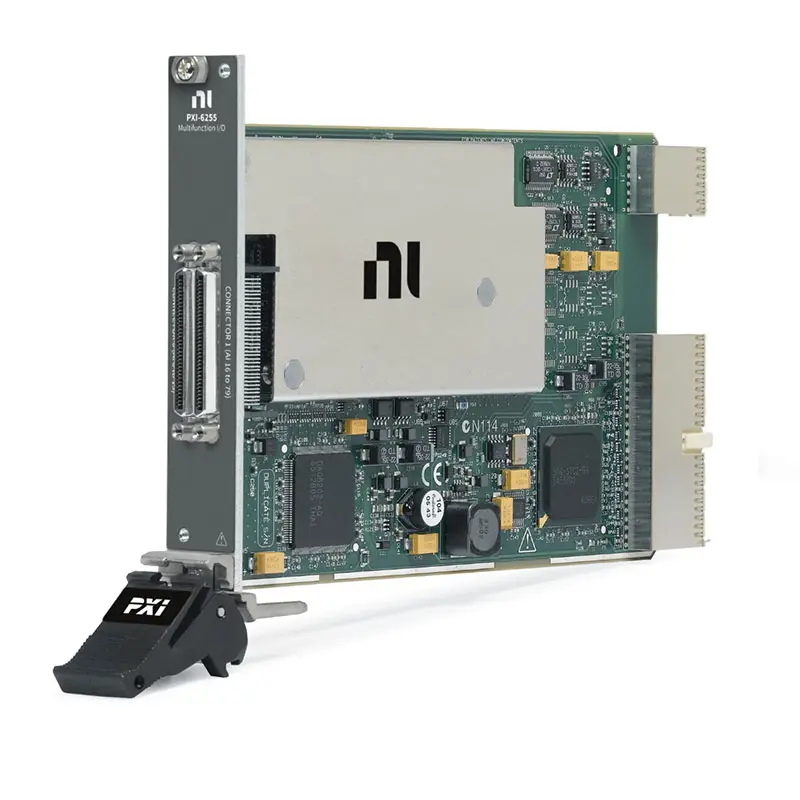

The PXI-6255 Multifunction DAQ Module is a multifunction data acquisition (DAQ) module designed for PXI systems. It integrates analog input, analog output, digital I/O, and counter/timer functions into a single module, making it suitable for a wide range of measurement, control, and automation applications.

Key Applications

1. General-Purpose Data Acquisition (DAQ)
PXI-6255 is widely used for collecting analog and digital signals from sensors, transducers, and electronic systems in laboratories, industrial plants, and engineering environments.

2. Sensor and Transducer Measurement
It is suitable for measuring signals from temperature, pressure, strain, displacement, voltage, and current sensors for monitoring and analysis applications.

3. Industrial Automation and Process Control
With built-in analog and digital I/O, PXI-6255 is commonly used in automation systems for process monitoring, actuator control, system feedback, and closed-loop control testing.

4. Digital Signal and Embedded System Testing
The module supports digital signal acquisition and generation, making it useful for testing logic circuits, embedded interfaces, relays, switches, and digital control systems.

5. Counter/Timer and Motion Applications
Its counter/timer capabilities support encoder measurements, pulse generation, frequency measurement, event counting, and motion control applications.

6. Hardware-in-the-Loop (HIL) Simulation
PXI-6255 is often integrated into HIL simulation systems where analog and digital signals are required to emulate real-world operating conditions and validate system responses.

7. Research, Education, and System Prototyping
It is widely used in universities, R&D laboratories, and engineering teams for experimental setups, prototype development, and validation tasks.
