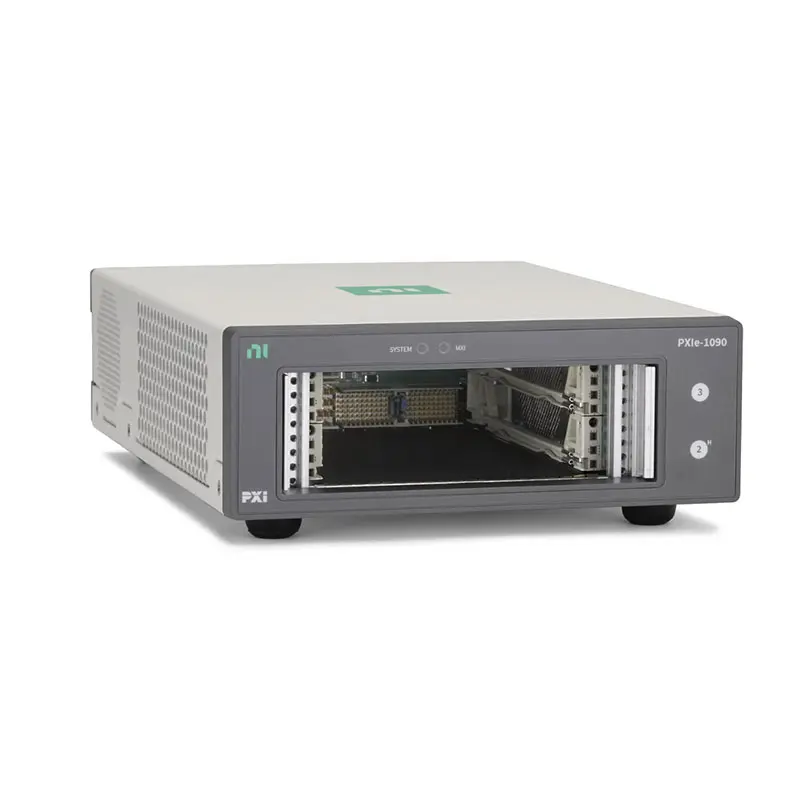

PXIe-1090

The PXIe‑1090 features a high-bandwidth backplane to meet high-performance test and measurement application needs. This PXI chassis features one hybrid connector, 58 W power and cooling, and an integrated Thunderbolt 3 MXI-Express controller. Thunderbolt is a trademark of Intel Corporation or its subsidiaries in the US and/or other countries.

Part Number(s): 787040-01

Key Applications

1. Embedded Test and Measurement Systems
PXIe-1090 is well-suited for integration into embedded systems where space is extremely limited, such as onboard testing in machinery, vehicles, or specialized equipment.

2. Portable and Field Testing
Its small size and lightweight design make it ideal for portable test setups and field diagnostics, allowing engineers to perform measurements directly on-site.

3. Low Channel Count Data Acquisition
PXIe-1090 supports basic data acquisition applications with a small number of channels, such as sensor monitoring, environmental measurements, and simple signal analysis.

4. Remote and Distributed Systems
It can be deployed in distributed measurement systems where multiple compact units are installed across different locations to collect and transmit data.

5. Industrial Monitoring and Diagnostics
Used in industrial environments for equipment monitoring, fault diagnostics, and condition-based maintenance, especially where installation space is limited.

6. Education and Entry-Level R&D
PXIe-1090 is suitable for teaching environments and small-scale research projects, offering a cost-effective and simple platform for PXI-based system development.
