PXIe-6547
$17,800.00
Item details
Active Load: No
Number of Bidirectional Digital Channels: 32
Logic Levels And Range: 1.2V – 3.3V, Programmable
Supports Hardware Compare: Yes
Supports PMU: No
Signaling Type: Single-Ended
Maximum Generation Rate: 20 Mbits/s
Maximum Acquisition Rate: 20 Mbits/s
20
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

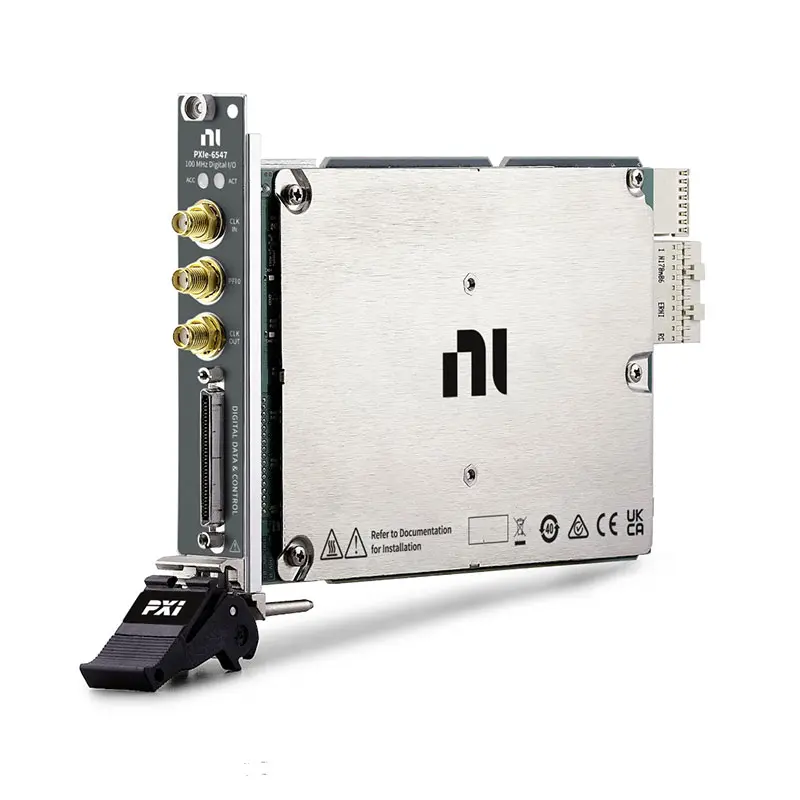

NI PXIe-6547 Digital Waveform Instrument
PXIe, 10 MHz, 32-Channel PXI Express PXI Digital Waveform Instrument
The PXIe‑6547 is a digital waveform generator and analyzer for interfacing and basic characterization test with 32 single-ended digital pins. The device is capable of sampling digital waveforms at up to 10 MHz and interfacing with user-programmable voltage levels that have a 10 mV resolution. The PXI‑6547 also features advanced synchronization capabilities for building integrated mixed-signal test systems, hardware comparison for bit-error test, and per-bank digital timing features.
Part Number(s): 781011-02 | 781011-03
Applications and Use Cases of PXIe-6547
The PXIe-6547 Digital Waveform Generator/Analyzer is a high-speed digital waveform generator and analyzer for PXI Express systems. It provides high-speed digital pattern generation and acquisition with precise timing control, making it suitable for digital communication testing, semiconductor validation, and high-speed digital interface analysis.
| Application | Description |
|---|---|
| High-Speed Digital Waveform Generation & Acquisition | Generate and capture high-speed digital signals for waveform analysis and system validation |
| Digital Communication & Protocol Testing | Validate high-speed and custom digital communication interfaces |
| Semiconductor Testing | Test ICs, FPGAs, and memory devices with digital patterns |
| Embedded System & PCB Validation | Verify digital functionality in embedded systems and circuit boards |
| Hardware-in-the-Loop (HIL) Simulation | Generate and analyze digital signals for real-time system simulation |
| Automated Test Equipment (ATE) | Integrate into automated test systems for production testing |
| R&D and Digital System Debugging | Analyze and debug high-speed digital systems and interfaces |
