PXIe-8301

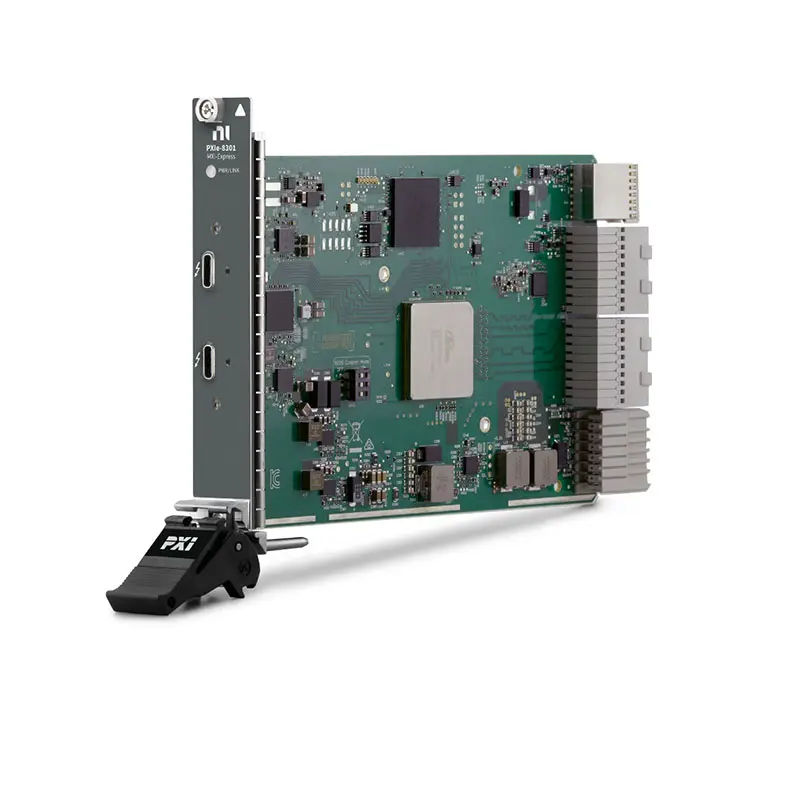

The PXIe-8301 enables laptop control of a PXI Express chassis over a Thunderbolt™ 3 connection. Using a Gen 3 x4 PCI Express link, the PXIe-8301 allows up to 2.3 GB/s of sustained data throughput between the chassis and laptop over a Thunderbolt 3 USB Type-C cable. An additional Thunderbolt 3 port allows for connecting additional Thunderbolt or USB-C devices. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

Part Number(s): 785679-01

Key Applications

1. Remote Control of PXIe Systems
PXIe-8301 enables a standard PC to function as the system controller for a PXIe chassis, managing all installed modules and executing test and measurement tasks remotely.

2. Cost-Effective System Architecture
It is ideal for users who prefer to use an external PC instead of purchasing an embedded controller, reducing overall system cost while maintaining high performance.

3. High-Performance Data Transfer
With MXI-Express technology, PXIe-8301 provides high-speed, low-latency data communication between the PC and PXIe chassis, suitable for data-intensive applications.

4. Automated Test Systems (ATE)
Widely used in automated test environments where centralized control from a powerful workstation is required for executing test sequences and managing multiple instruments.

5. Laboratory and Benchtop Testing
PXIe-8301 is commonly used in lab setups where engineers prefer to control PXIe systems directly from a PC interface for ease of use and system integration.

6. Flexible and Scalable Test Systems
It allows easy upgrades and scalability, as users can replace or upgrade the external PC independently of the PXIe chassis.

7. Industrial and Production Testing
Used in manufacturing and industrial environments where centralized PC-based control systems are preferred for monitoring, control, and data analysis.
