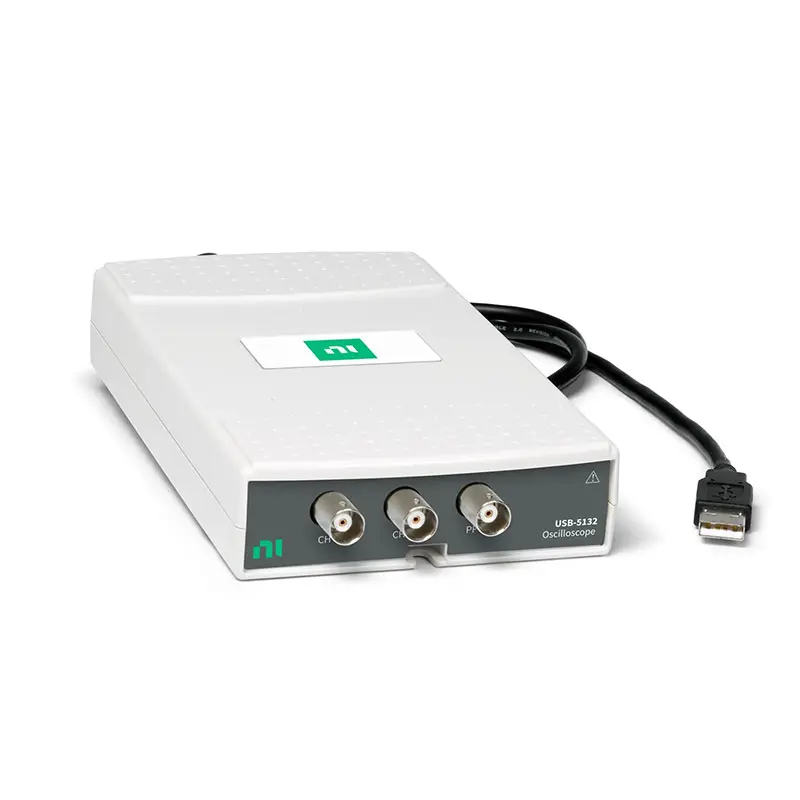

USB-5132

The USB5132 low-cost oscilloscope device has two channels that sample up to 50 MS/s with flexible settings for coupling, impedance, voltage range, and filtering. Oscilloscope devices also feature a number of triggering modes and an instrument driver that includes data streaming and analysis functions. This device is ideal for portable and benchtop applications with fast signals that require flexible measurement configurations and up to 50 MHz of analog bandwidth.

Applications and Use Cases of USB-5132

The USB-5132 High-Speed Digitizer is a high-speed USB digitizer designed for accurate waveform acquisition and signal analysis. It offers high sampling rates and reliable performance, making it suitable for applications requiring portable and flexible measurement solutions.

1. High-Speed Signal Acquisition
USB-5132 is used to capture fast analog waveforms and transient signals, enabling detailed analysis of signal behavior.

2. Communication Signal Analysis
It is applied in communication systems to evaluate signal integrity, modulation characteristics, and timing performance.

3. Semiconductor & Electronic Testing
The device supports testing and validation of ICs and electronic components through accurate waveform measurement.

4. Power Electronics Measurement
USB-5132 captures voltage and current waveforms in power systems, helping analyze switching behavior and transient responses.

5. Portable Test & Measurement
With USB connectivity, it is ideal for portable testing setups and on-site measurements.

6. Research & Laboratory Applications
Widely used in laboratories for waveform analysis, circuit validation, and experimental measurements.

7. Fault Detection & Debugging
Engineers use the device to identify signal anomalies, glitches, and timing issues for troubleshooting and system optimization.
