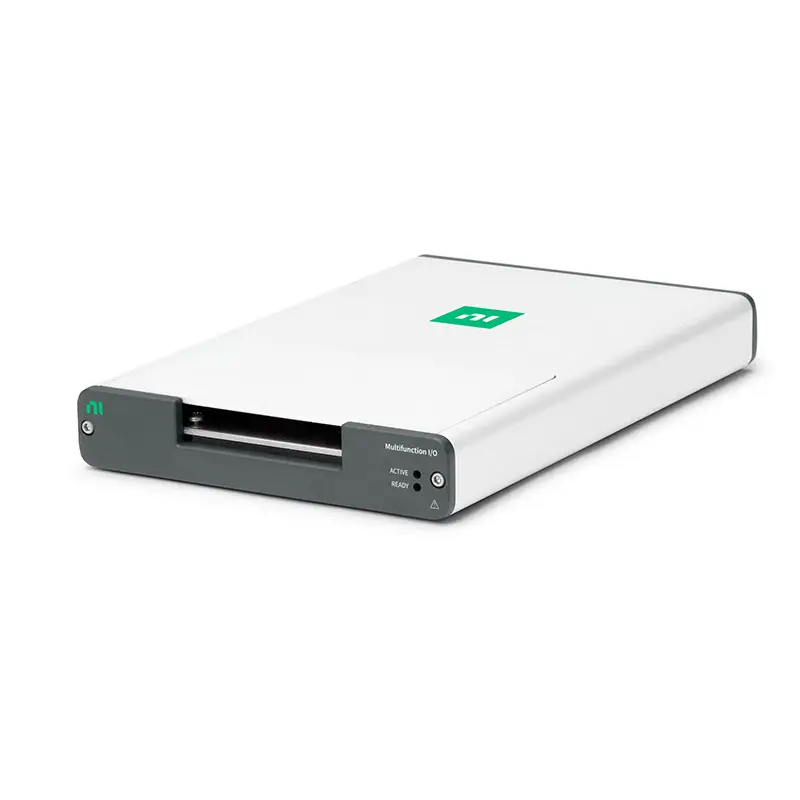

USB-6343

The USB‑6343 offers analog I/O, digital I/O, and four 32‑bit counters/timers for PWM, encoder, frequency, event counting, and more. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The USB‑6343 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 782253-01 | 781439-01 | 782252-01

Applications and Use Cases of USB-6343

The USB-6343 Multifunction DAQ Device is a high-performance multifunction data acquisition device, designed for high-speed measurement, control, and signal generation. It provides analog input/output, digital I/O, and counter/timer capabilities, making it suitable for advanced data acquisition and automation tasks.

1. High-Speed Data Acquisition
USB-6343 is used to capture dynamic analog signals with high sampling rates, enabling accurate analysis of fast-changing signals.

2. Sensor & Measurement Systems
It interfaces with various sensors such as temperature, pressure, strain, and vibration sensors for precise data collection.

3. Industrial Automation & Control
The device supports digital I/O and analog output for controlling industrial equipment, actuators, and automated processes.

4. Signal Generation & Simulation
USB-6343 can generate analog signals for system excitation, testing, and simulation.

5. Automated Test Equipment (ATE)
Widely used in automated test systems for synchronized data acquisition and device validation.

6. Research & Development Applications
Used in laboratories for experimental measurements, system development, and validation.

7. Data Logging & Monitoring
Suitable for continuous monitoring and recording of system performance over time.
