USB-8506

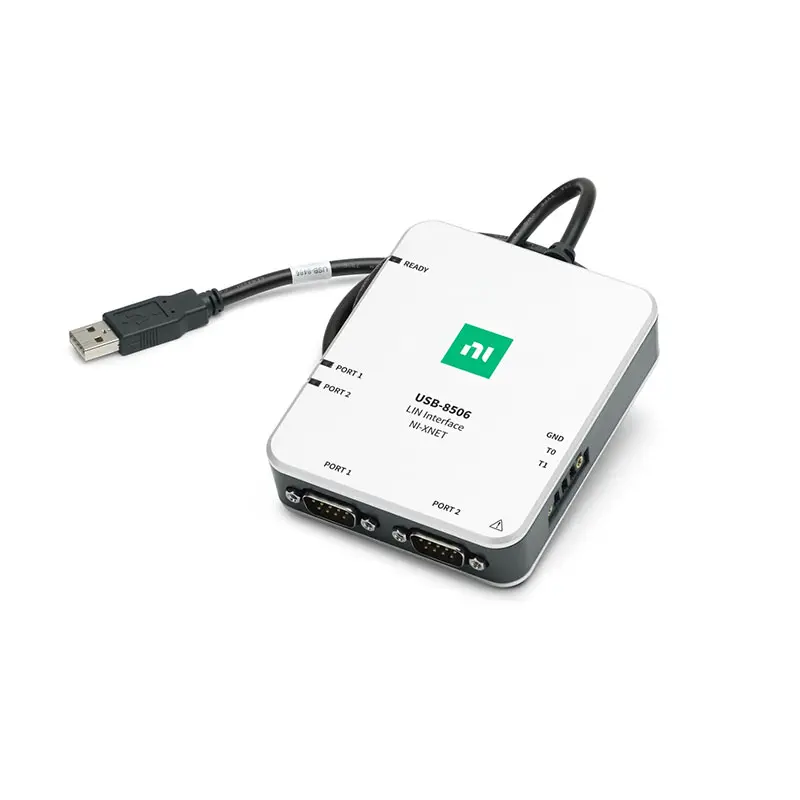

The USB-8506 is a Local Interconnect Network (LIN) interface device designed for developing applications with the NI-XNET driver. The USB-8506T is powered via USB, eliminating the need for an external power supply. The USB-8506 is ideal for applications that require logging or manipulating hundreds of LIN frames and signals, such as in-vehicle data logging, bus monitoring, and automation control. The NI-XNET device driver’s DMA engine enables the onboard processor to transfer CAN frames and signals between the interface and the user program without interrupting the CPU, minimizing message latency and freeing the host processor to perform other tasks. The USB-8506 features a three-pin COMBICON synchronization connector for triggering the internal hardware timebase to synchronize other devices.

Applications and Use Cases of USB-8506

The USB-8506 CAN Interface Device is a USB-based CAN interface device designed for Controller Area Network (CAN) communication, monitoring, and analysis. It provides reliable high-speed CAN connectivity, making it ideal for automotive, industrial, and embedded system applications.

1. CAN Bus Communication
USB-8506 is used to transmit and receive CAN messages, enabling communication between ECUs and networked devices.

2. Automotive ECU Testing
Widely used for testing and validating electronic control units (ECUs), including diagnostics and functional verification.

3. CAN Network Monitoring & Diagnostics
Allows real-time monitoring of CAN traffic, helping engineers analyze communication behavior and detect faults.

4. Hardware-in-the-Loop (HIL) Simulation
Used in HIL systems to simulate CAN communication for real-time testing and system validation.

5. Industrial CAN Communication
Supports CAN-based communication in industrial automation systems for reliable data exchange.

6. Automated Test Equipment (ATE)
Integrated into test systems to provide CAN communication for device testing and validation.

7. Research & Embedded System Development
Used in R&D for developing, testing, and validating CAN-based embedded systems.
