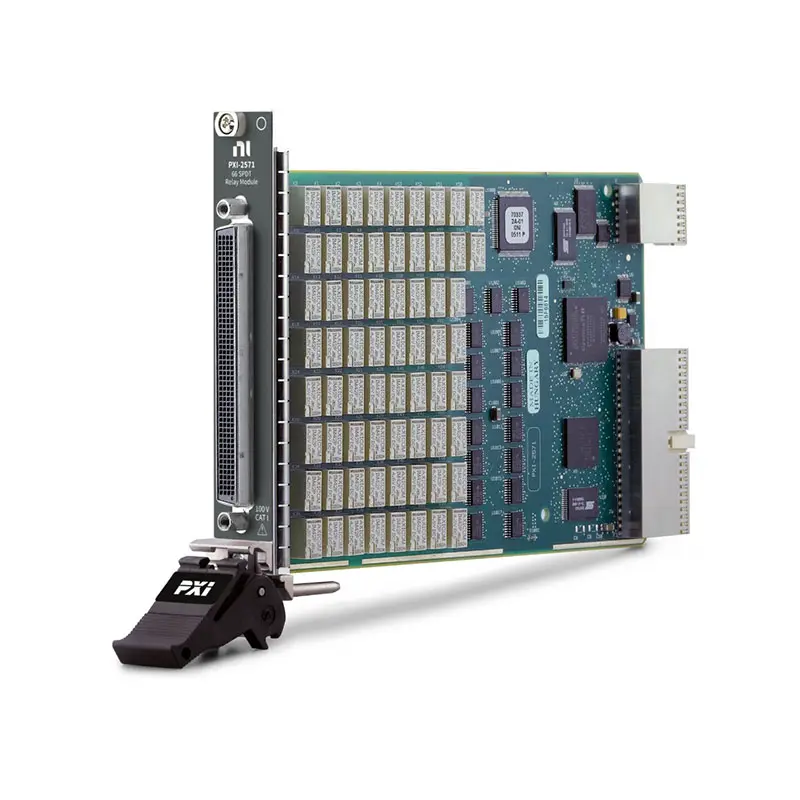

PXI-2571

The PXI‑2571 is a general-purpose switch module that features independent single‑pole double‑throw (SPDT) Form C armature relays. Each relay channel has a normally closed (NC), normally open (NO), and common (COM) terminal.

Applications and Use Cases of PXI-2571

The PXI-2571 Relay Multiplexer Switch Module is a PXI-based relay multiplexer switch module designed for automated signal routing, channel multiplexing, and scalable measurement systems. It enables multiple signals to be connected to shared instruments efficiently, making it ideal for automated test equipment (ATE), data acquisition systems, and industrial testing applications.

1. Multiplexed Signal Routing
PXI-2571 allows multiple input channels to share a common measurement instrument through automatic switching.

2. Automated Test Equipment (ATE)
Widely used in ATE systems for automatic switching of test signals and measurement paths during production testing.

3. Multi-Channel Data Acquisition Systems
Supports acquisition of multiple sensor or device signals using shared DAQ resources.

4. Industrial Monitoring & Process Control
Applied in industrial systems for monitoring multiple process variables and equipment signals.

5. Sequential Multi-DUT Testing
Used for automated sequential testing of multiple devices under test (DUTs).

6. Research & Laboratory Applications
Used in labs for flexible signal routing, configurable test setups, and instrumentation sharing.

7. Production & Quality Testing
Applied in manufacturing environments for repeatable electrical testing and validation.
