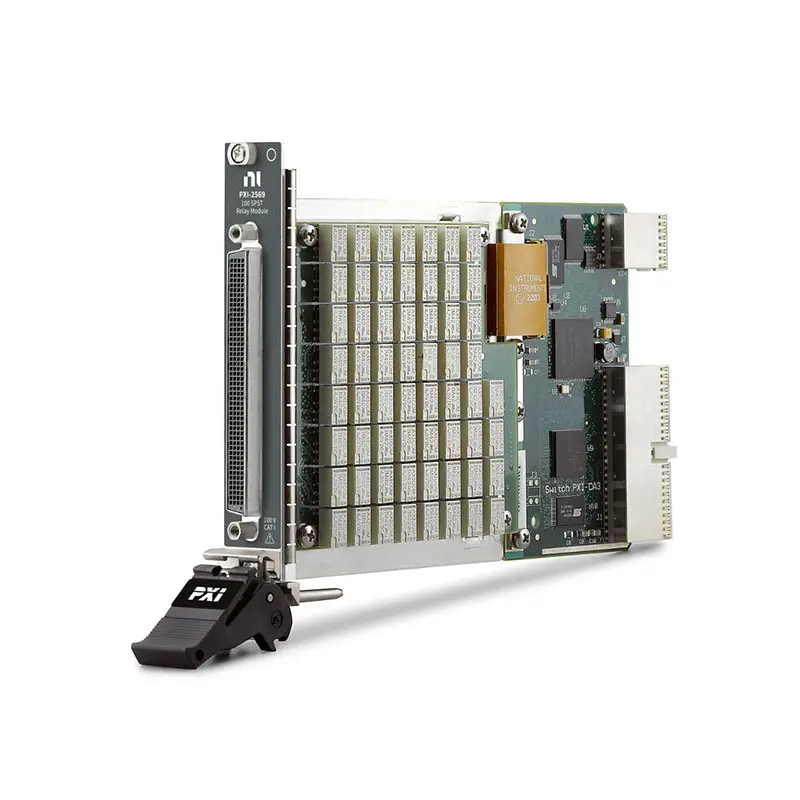

PXI-2569

The PXI‑2569 is a general-purpose switch module that features independent single‑pole single‑throw (SPST) Form A armature relays. It is fully software programmable and contains a 32,000‑step scan list for deterministic scanning capability. This module offers maximum relay density, so it is ideal for medium-power automated test loads.

Applications and Use Cases of PXI-2569

The PXI-2569 Relay Switch Matrix Module is a PXI-based high-density relay switch matrix module designed for automated signal routing, multiplexing, and scalable switching architectures. It provides flexible matrix configurations with reliable relay switching, making it suitable for automated test equipment (ATE), multi-channel measurement systems, and signal distribution applications.

1. High-Density Signal Routing
PXI-2569 enables flexible routing of signals between multiple instruments and DUTs within configurable matrix structures.

2. Automated Test Equipment (ATE)
Widely used in ATE systems for automatic switching of signal paths, measurement points, and test channels.

3. Multiplexed Measurement Systems
Allows multiple signals to share common measurement instruments, reducing hardware cost and simplifying system design.

4. Multi-Channel Device Testing
Supports automated sequential or parallel testing of multiple DUTs and channels.

5. Industrial & Production Testing
Applied in manufacturing environments for automated electrical validation and high-throughput testing.

6. Data Acquisition & Instrument Sharing
Enables efficient sharing of DAQ and measurement instruments across multiple devices or channels.

7. Research & Laboratory Applications
Used in labs for flexible signal routing, configurable measurement setups, and instrumentation sharing.
