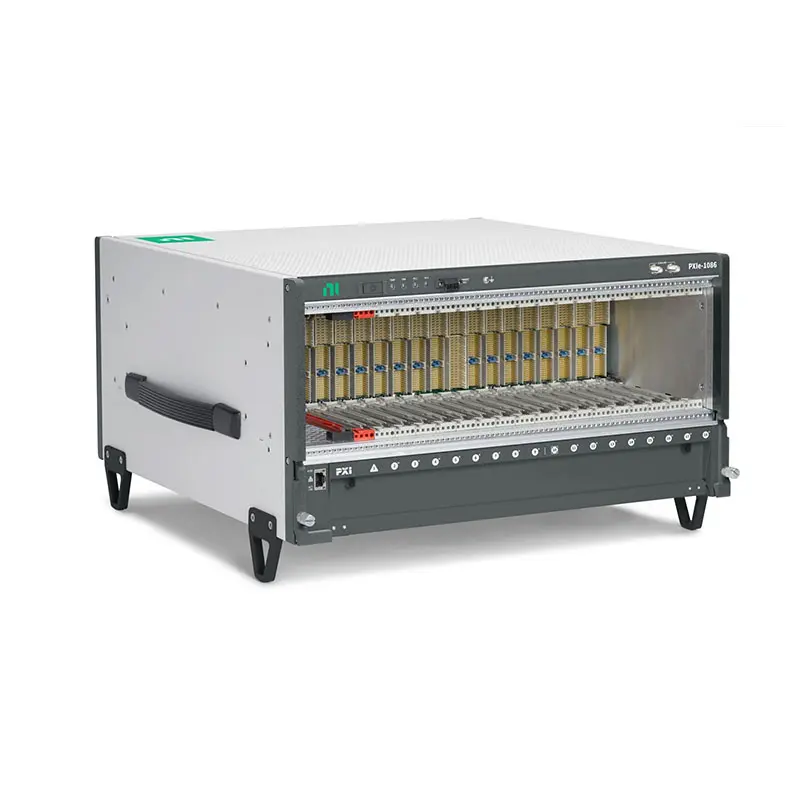

PXIe-1086

The PXIe‑1086 incorporates hot-swappable, redundant AC power supplies as well as hot-swappable, front-accessible, redundant cooling fans. These high-availability features improve the mean time between failure (MTBF) and mean time to repair (MTTR) of the PXI system. The PXIe‑1086 monitors power supply health/voltages, air intake temperature, and fan health/speed; it provides any failure feedback with the status LEDs located on the chassis. This chassis is ideal for test, measurement, and control applications with demanding system uptime requirements.

Part Number(s): 781720-01

Key Applications

1. Medium-to-Large Automated Test Systems (ATE)
PXIe-1086 is commonly used in automated test systems for electronics manufacturing, automotive components, and subsystem validation. Its multiple slots enable parallel testing and efficient system integration.

2. Multi-Channel Data Acquisition
It supports synchronized, high-channel-count data acquisition in applications such as industrial monitoring, energy systems, and environmental testing, ensuring accurate and consistent measurements.

3. RF and Wireless Communication Testing
PXIe-1086 can be configured with RF modules for signal generation and analysis, making it suitable for wireless communication testing, including LTE, IoT, and general RF validation.

4. Industrial Automation and Control Systems
In industrial environments, PXIe-1086 is used for validating control systems, testing sensors and actuators, and verifying system integration in automated production lines.

5. Aerospace and Defense Testing
The chassis is suitable for aerospace and defense applications such as hardware-in-the-loop (HIL) simulation, avionics testing, and electronic system validation, where synchronization and reliability are essential.

6. Research and Development (R&D)
PXIe-1086 is widely used in research labs and engineering teams for system prototyping, validation, and experimental setups requiring multiple synchronized instruments.
