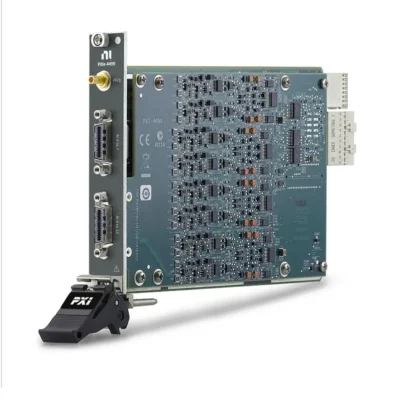

PXIe-4499
Original price was: $21,565.00.$5,800.00Current price is: $5,800.00.
-65%
PXIe-4497
Original price was: $16,700.00.$5,800.00Current price is: $5,800.00.
Item details
Maximum Number of Differential Analog Input Channels: –
Number of Analog Output Channels: –
Bus Connector: PXI Express
Analog Input Coupling: AC/DC
Number of Gain Settings: –
Highpass Filter Cut-Off Frequency: 0.5 Hz
Front Connection Type: InfiniBand (IB), InfiniBand (IB), SMB
Maximum Sample Rate: 204.8 kS/s
DSA Dynamic Range: 114 dB
18
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

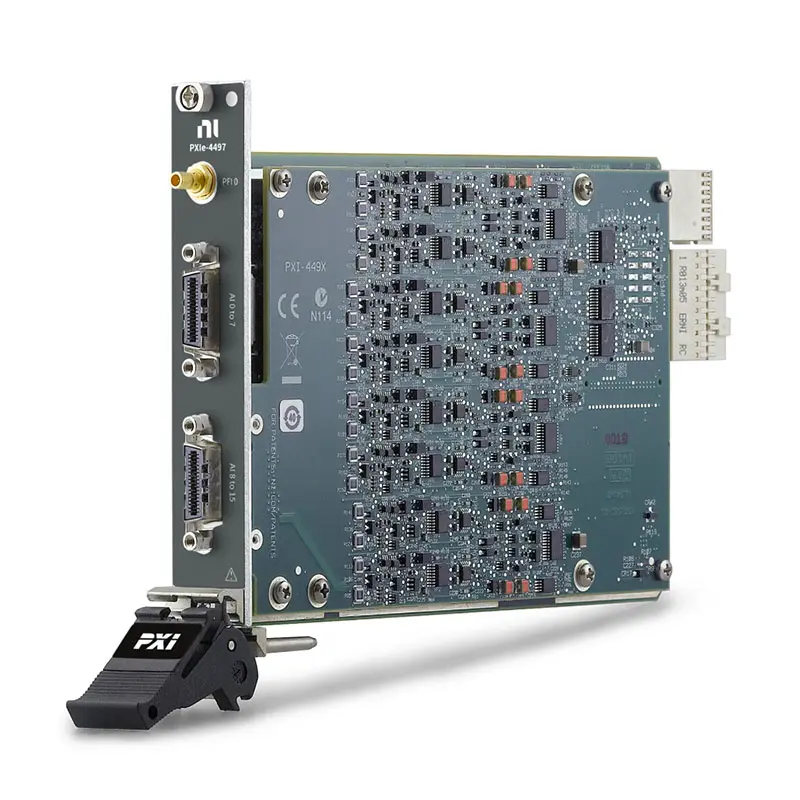

NI PXIe-4497 Sound and Vibration Module
204.8 kS/s, 114 dB, 2 Gains, AC/DC-Coupled, 16-Input PXI Sound and Vibration Module
The PXIe‑4497 is designed for high‑channel‑count sound and vibration applications. With 24-bit analog inputs and IEPE constant current signal conditioning, the PXIe‑4497 is ideal for making precision measurements with microphones, accelerometers, and other transducers that have very large dynamic ranges. The PXIe‑4497 delivers simultaneous sample on all channels. In addition, the module includes built-in antialiasing filters that automatically adjust to your sample rate, software-selectable input gain, and TEDS smart sensor support for error-free setup. Common applications include noise, vibration, and harshness (NVH) analysis; large microphone arrays; and dynamic structural test.
Part Number(s): 789565-01
Applications and Use Cases of PXIe-4497
The PXIe-4497 Dynamic Signal Acquisition Module is a high-performance dynamic signal acquisition module for PXI Express systems, designed for precision sound and vibration measurements. It offers simultaneous sampling, high dynamic range, and low noise, making it suitable for demanding acoustic and vibration analysis applications.
| Application | Description |
|---|---|
| Sound and Vibration Measurement | Acquire high-accuracy acoustic and vibration signals for analysis |
| NVH Testing | Evaluate noise, vibration, and harshness in automotive and aerospace systems |
| Structural Health Monitoring | Detect structural faults through vibration analysis |
| Acoustic Testing & Audio Analysis | Perform audio system testing and sound quality evaluation |
| Machine Condition Monitoring | Monitor machinery vibration for predictive maintenance |
| Modal and Frequency Analysis | Conduct dynamic system and frequency response analysis |
| R&D and Laboratory Testing | Support advanced research in acoustics and vibration |
Specification
Overview
| Brand |
National Instruments |
|---|
