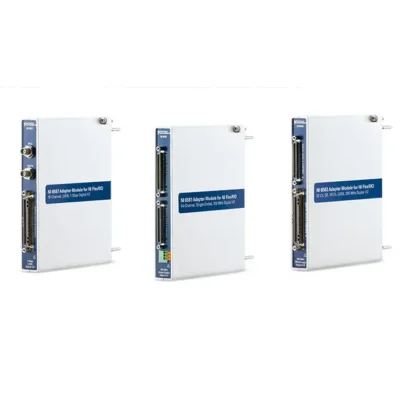

NI-6581B

The NI-6581B is a digital I/O adapter module that, when combined with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO, creates a digital instrument for interfacing with 54 single-ended digital pins. A digital I/O adapter module for FlexRIO can be used to do real-time interfacing of standard protocols and implement customized protocols. The NI-6581B can operate sample digital waveforms at up to 100 MHz. It includes support for common transistor-to-transistor logic (TTL) voltage levels, or other voltage references can be sourced externally using a front panel connector.

Part Number(s): 783887-01

Applications and Use Cases of NI-6581B

The NI-6581B Digital Adapter Module is a high-speed digital adapter module designed for use with NI FlexRIO FPGA modules. It provides parallel digital I/O with high throughput and flexible voltage levels, enabling custom digital communication, high-speed data streaming, and real-time FPGA-based processing.

Key Applications

1. High-Speed Digital Data Streaming
NI-6581B is widely used for high-throughput digital data transfer between external devices and FPGA systems, making it ideal for applications requiring fast parallel data movement.

2. Custom Digital Communication Protocols
With FPGA programmability, it enables implementation of custom or proprietary communication protocols, supporting specialized system requirements.

3. Semiconductor and Device Testing
It can be used for digital pattern generation and acquisition in semiconductor testing, helping validate ICs, FPGAs, and digital subsystems.

4. Imaging and Data Acquisition Systems
NI-6581B is suitable for interfacing with high-speed imaging sensors, cameras, and data acquisition devices that use parallel digital outputs.

5. Hardware-in-the-Loop (HIL) and Real-Time Systems
It supports deterministic, low-latency digital I/O, making it suitable for HIL applications and real-time system validation.

6. Embedded System and FPGA Prototyping
The module is widely used in FPGA-based prototyping for embedded systems, enabling flexible digital interfacing and system development.

7. Research, Development, and Advanced Testing
NI-6581B is commonly used in research labs and engineering environments for developing digital systems, testing high-speed interfaces, and validating complex designs.
