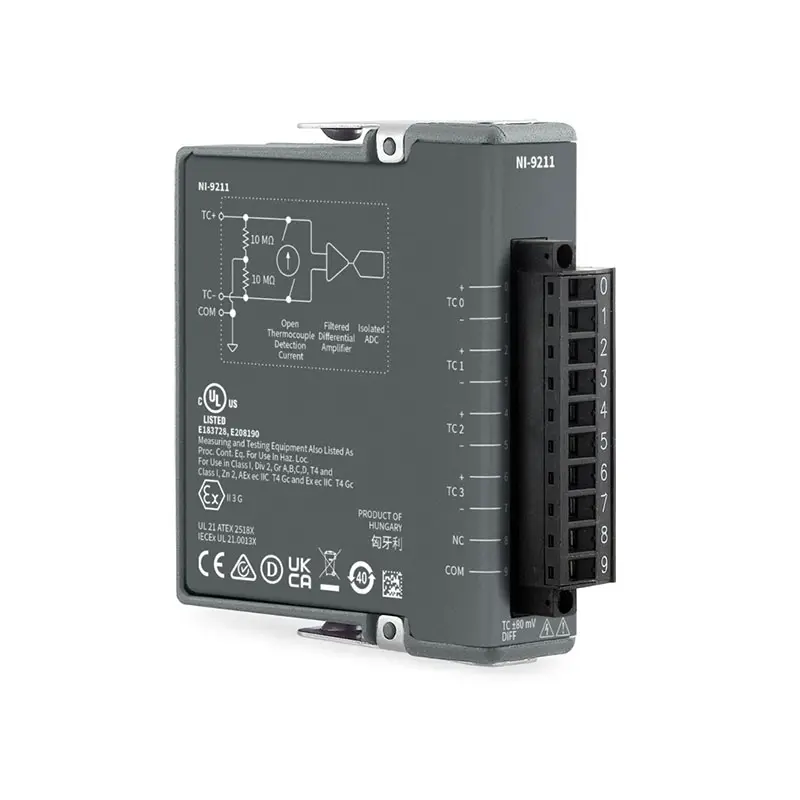

NI-9211

The NI‑9211 includes anti-aliasing filters, open-thermocouple detection, and cold-junction compensation for high-accuracy thermocouple measurements. The NI‑9211 features NIST‑traceable calibration and a channel‑to‑earth ground double isolation barrier for safety, noise immunity, and high common-mode voltage range.

Applications and Use Cases of NI-9211

The NI-9211 C Series Thermocouple Input Module is a C Series module designed for high-accuracy thermocouple temperature measurement. It features built-in cold junction compensation (CJC), channel-to-channel isolation, and high noise rejection, making it suitable for applications requiring precise and reliable temperature acquisition in demanding environments.

1. High-Accuracy Thermocouple Measurement
NI-9211 is used to measure temperature from various thermocouple types (J, K, T, E, N, etc.) with high precision, suitable for critical measurement applications.

2. Industrial Temperature Monitoring
Widely used in industrial systems to monitor temperature in machinery, production processes, and thermal systems with improved accuracy and stability.

3. Multi-Point Temperature Acquisition
Supports multiple channels, enabling simultaneous measurement of temperature at different points in a system.

4. Harsh Environment Measurement
With channel isolation and noise immunity, it performs reliably in electrically noisy or harsh industrial environments.

5. Process Control Systems
Used in process industries for monitoring and controlling temperature-dependent processes such as heating, cooling, and chemical reactions.

6. Data Acquisition Systems (DAQ)
Integrated into CompactDAQ and CompactRIO systems for centralized temperature data collection.

7. Research & Laboratory Applications
Used in laboratories for high-precision thermal experiments, system validation, and data analysis.
