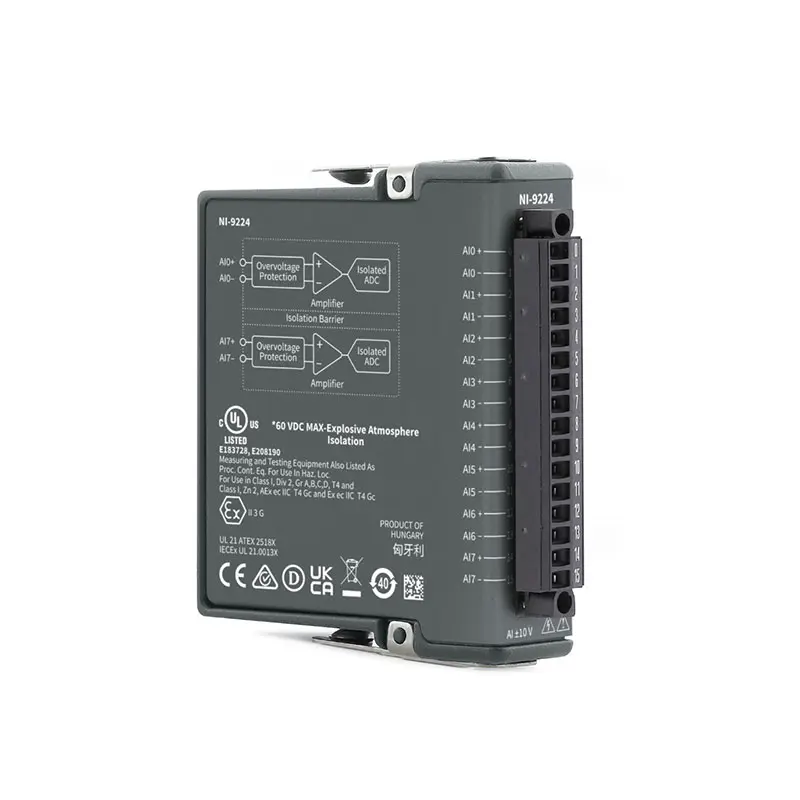

NI-9224

The NI‑9224 performs differential analog input. With channel‑to‑channel isolation, your entire system, including the device under test, is protected from harmful voltage spikes up to the isolation rating. The NI‑9224 is simultaneous sampling with two options for filtering: a low-latency filter or a 50/60 Hz rejection filter. The low-latency filter enables users to use this module in industrial or control applications while getting better external noise rejection.

Applications and Use Cases of NI-9224

The NI-9224 C Series Current Input Module is a C Series analog input module designed for industrial current measurement (4–20 mA / 0–20 mA) with channel-to-channel isolation and high noise immunity. It is ideal for applications requiring reliable current signal acquisition in industrial environments.

1. Industrial Current Signal Measurement
NI-9224 is used to measure standard industrial current signals (4–20 mA), ensuring stable and accurate acquisition in process control systems.

2. Process Control & Monitoring Systems
Widely applied in monitoring parameters such as temperature, pressure, flow, and level where transmitters output current signals.

3. Sensor & Transmitter Integration
Supports direct connection to industrial sensors and transmitters, enabling robust long-distance signal transmission.

4. Electrical Isolation & Noise Immunity
Each channel is isolated to reduce electrical noise and protect measurement systems in harsh environments.

5. Data Acquisition Systems (DAQ)
Integrated into CompactDAQ and CompactRIO platforms for centralized current signal monitoring across multiple channels.

6. Automated Test Equipment (ATE)
Used in automated testing systems for current signal acquisition and validation of industrial devices.

7. Energy & Utility Monitoring
Applied in energy systems and infrastructure for monitoring current-based signals and system status.
