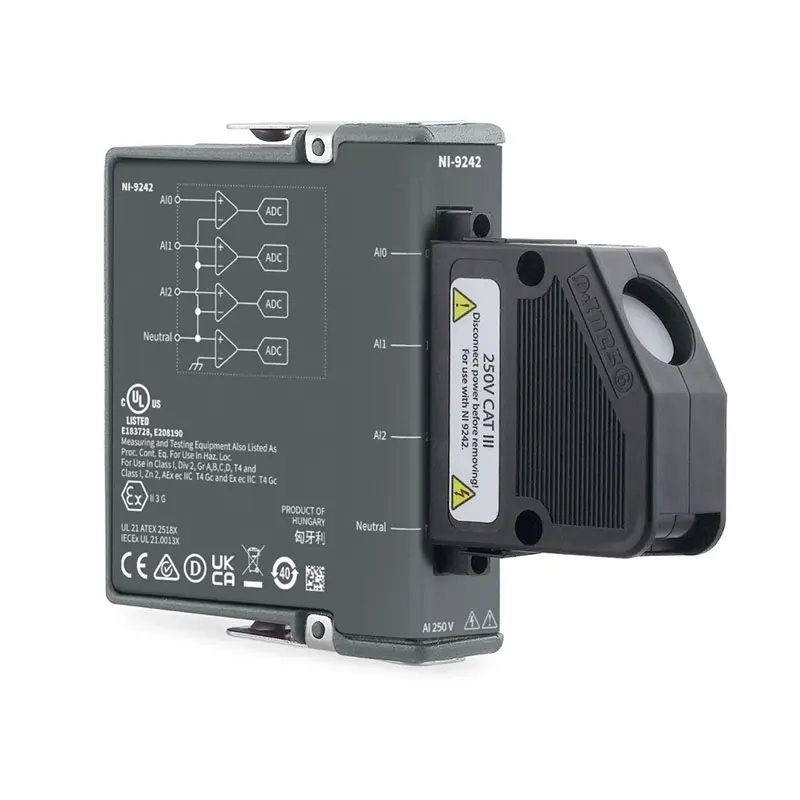

NI-9242

The NI‑9242 performs single-ended analog input. The wide measurement range makes it ideal for high-voltage measurement applications such as phasor measurements, power metering, power quality monitoring, standard potential transformers, and motor test. You can also perform transient and harmonic analysis with high-speed simultaneous sampling. The NI‑9242 offers three channels, so you can connect single‑ or three‑phase measurement configurations such as WYE and delta. You can incorporate the NI‑9242 into systems to meet standards such as IEC 61010‑1, C37.90 and C37.60, IEC 60255‑22‑(1:7), IEC 60255‑1, C37.188 Class M and P, EMC section of IEC 60870, EMC sections of IEC 61850, IEC 61000‑4‑30 Class S, and IEC 61000‑4‑7.

Applications and Use Cases of NI-9242

The NI-9242 C Series Digital Input Module is a C Series module designed for industrial digital signal acquisition (24 V logic). It provides high-channel density, fast response, and channel isolation, making it suitable for applications requiring reliable monitoring of industrial digital signals.

1. Industrial Digital Signal Monitoring
NI-9242 is used to read 24 V digital signals from industrial devices such as switches, relays, and sensors.

2. PLC Signal Interface
Acts as an interface between PLC systems and DAQ platforms, enabling data acquisition from control systems.

3. Machine Status Monitoring
Used to monitor machine states such as ON/OFF conditions, alarms, and operational signals.

4. Production Line Automation
Applied in automated production systems to track signals from actuators, sensors, and control devices.

5. Event Detection & Logging
Captures digital state changes and logs events for diagnostics and system analysis.

6. Data Acquisition Systems (DAQ)
Integrated into CompactDAQ and CompactRIO systems for centralized digital signal collection.

7. Automated Test Equipment (ATE)
Used in testing environments for acquiring digital input signals and validating system behavior.
