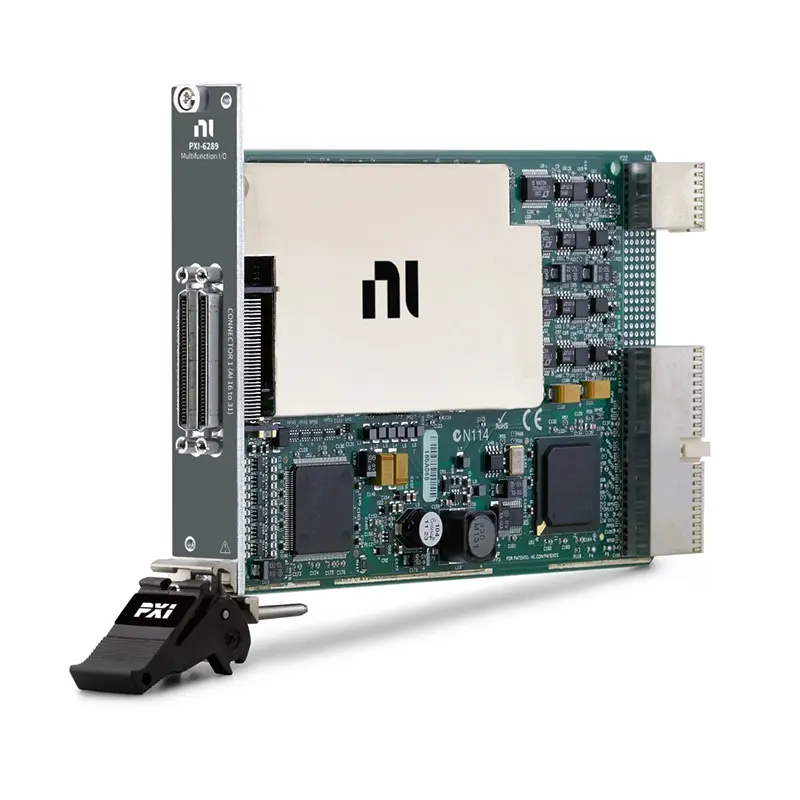

PXI-6289

The PXI‑6289 offers analog I/O, correlated digital I/O, two 32‑bit counter/timers, and analog and digital triggering. The device delivers low-cost, reliable DAQ capabilities in a wide range of applications from simple applications in laboratory automation, research, design verification/test, and manufacturing test. You can add sensor and high-voltage measurement capability to your device with SCC or SCXI signal conditioning modules. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 779639-01

Applications and Use Cases of PXI-6289

The PXI-6289 Multifunction DAQ Module is a multifunction data acquisition (DAQ) module for PXI systems. It integrates analog input, analog output, digital I/O, and counter/timer capabilities into a single module, making it suitable for a wide range of test, measurement, monitoring, and control applications in both industrial and research environments.

1. General-Purpose Data Acquisition (DAQ)
PXI-6289 is widely used for acquiring analog and digital signals from sensors, instruments, and electronic systems in laboratory, industrial, and engineering applications.

2. Sensor and Transducer Measurement
It is suitable for measuring various physical signals such as voltage, current, temperature, pressure, displacement, and vibration, enabling accurate monitoring and analysis.

3. Industrial Automation and Process Control
With integrated analog and digital I/O, PXI-6289 is commonly used for process monitoring, actuator control, system feedback, and closed-loop automation systems.

4. Digital I/O and Embedded System Testing
The module supports digital signal acquisition and generation, making it useful for testing logic circuits, embedded systems, relays, switches, and control interfaces.

5. Counter/Timer and Motion Applications
Its built-in counter/timer functions support encoder measurement, pulse generation, event counting, frequency measurement, and motion control applications.

6. Hardware-in-the-Loop (HIL) Simulation
PXI-6289 is often used in HIL systems where analog and digital signals are required to simulate real-world conditions and validate system performance.

7. Research, Development, and Prototyping
It is widely used in universities, R&D laboratories, and engineering teams for prototype development, system validation, and experimental testing.
