PXI-6521

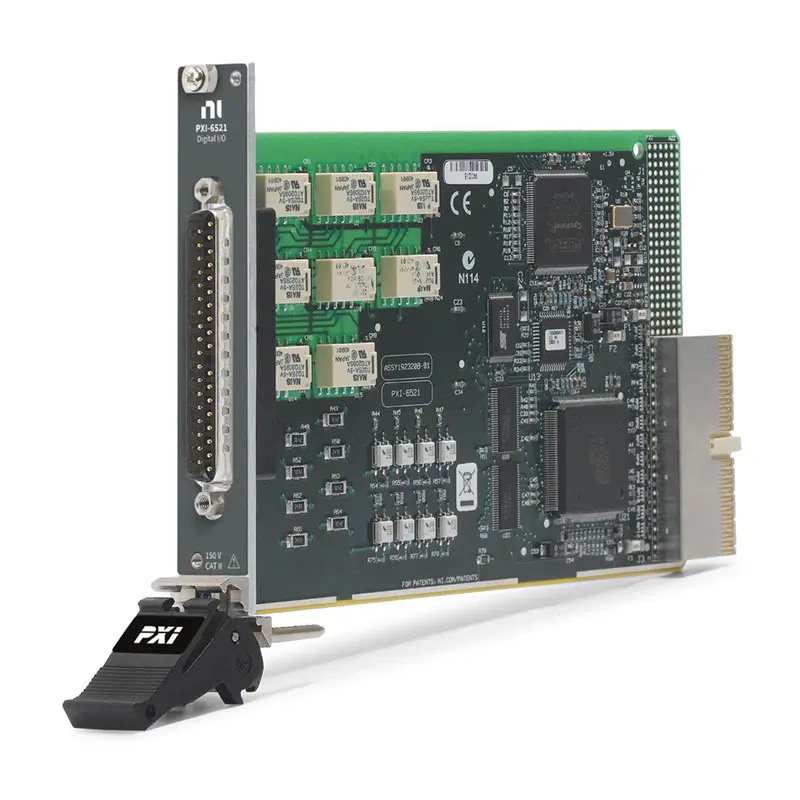

The PXI‑6521 is an industrial digital I/O module with high channel isolation and industry-standard 24 V logic levels. For added safety, the PXI‑6521 requires a keyed connector. If a computer or application fault occurs, the PXI‑6521 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. It also features programmable power-up states, digital filtering, and change detection for optimal control over your application.

Part Number(s): 779313-01

Applications and Use Cases of PXI-6521

The PXI-6521 Isolated Digital Input Module is an industrial digital input module for PXI systems, designed to provide reliable acquisition of digital signals with optical isolation. It supports high-voltage industrial signals while ensuring protection and noise immunity, making it suitable for demanding industrial environments.

1. Industrial Digital Signal Acquisition
PXI-6521 is widely used to acquire digital input signals from sensors, switches, relays, and PLC outputs in industrial systems.

2. Electrical Isolation and Protection
With optical isolation, the module protects the PXI system from high voltages, transients, and electrical noise, ensuring safe and stable operation.

3. Factory Automation and Monitoring
It is suitable for monitoring machine status, production line signals, and process conditions in automated manufacturing environments.

4. Equipment Status and Fault Detection
PXI-6521 can monitor ON/OFF states, alarms, and fault signals from industrial equipment, enabling real-time diagnostics and system monitoring.

5. Hardware-in-the-Loop (HIL) Simulation
The module is used in HIL systems to capture digital inputs from real or simulated hardware, supporting system validation and testing.

6. Test and Measurement Systems
It is commonly integrated into automated test systems to monitor digital outputs from devices under test (DUT).

7. Research, Development, and Industrial Applications
PXI-6521 is widely used in R&D labs and industrial environments for system integration, validation, and digital interface testing.
