PXI-7851

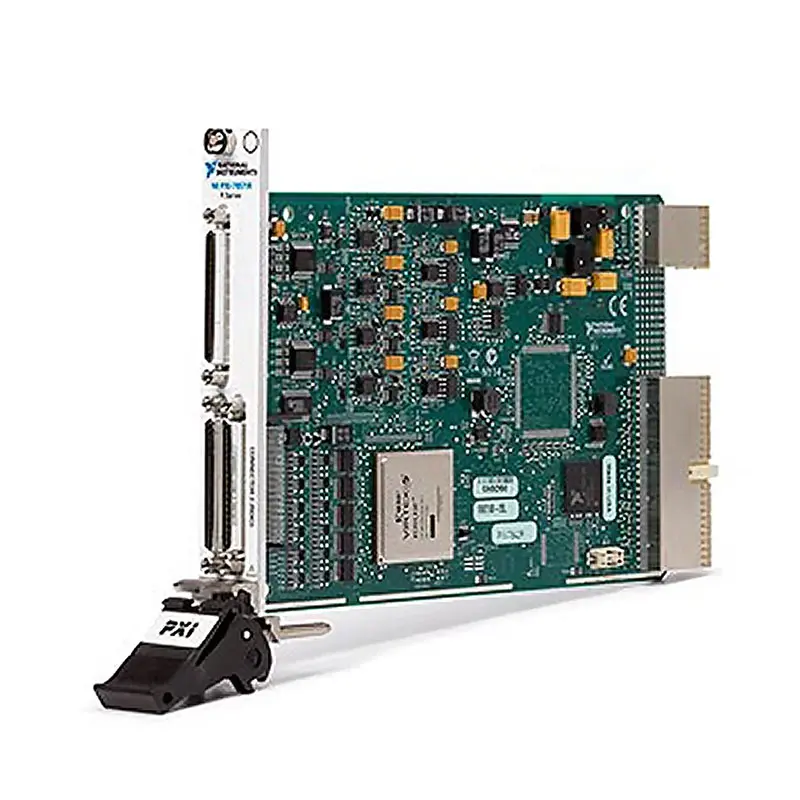

The PXI‑7851 features a user-programmable FPGA for high-performance onboard processing and direct control over I/O signals to ensure complete flexibility of system timing and synchronization. You can customize these devices with the LabVIEW FPGA Module to develop applications requiring precise timing and control such as hardware‑in‑the‑loop testing, custom protocol communication, sensor simulation, and high-speed control. The PXI‑7851 features a dedicated A/D converter (ADC) per channel for independent timing and triggering. This design offers specialized functionality such as multirate sampling and individual channel triggering, which are outside the capabilities of typical data acquisition hardware.

Applications and Use Cases of PXI-7851

The PXI-7851 R Series Multifunction RIO Module is a PXI-based R Series multifunction reconfigurable I/O (RIO) module that integrates analog input/output, digital I/O, counters, and a user-programmable FPGA. It is designed for custom measurement, real-time control, and deterministic processing, making it suitable for flexible and high-performance test and control systems.

1. FPGA-Based Custom Measurement Systems
PXI-7851 allows users to implement custom acquisition, triggering, and signal processing directly on the FPGA, enabling application-specific measurement solutions.

2. Real-Time Control & Deterministic Processing
Provides hardware-timed I/O with deterministic behavior, ideal for control systems requiring precise timing and low latency.

3. Mixed-Signal Data Acquisition (AI + AO + DIO)
Supports simultaneous acquisition and generation of analog and digital signals, enabling comprehensive system monitoring and control.

4. Hardware-in-the-Loop (HIL) Simulation
Widely used in HIL systems for real-time interaction with embedded controllers and system validation.

5. Industrial Automation & Machine Control
Used to control equipment, process sensor inputs, and execute logic in industrial environments.

6. Automated Test Equipment (ATE)
Integrated into test systems for synchronized measurement, signal generation, and real-time decision making.

7. Research & Advanced Prototyping
Used in laboratories for FPGA development, control system design, and rapid prototyping.
