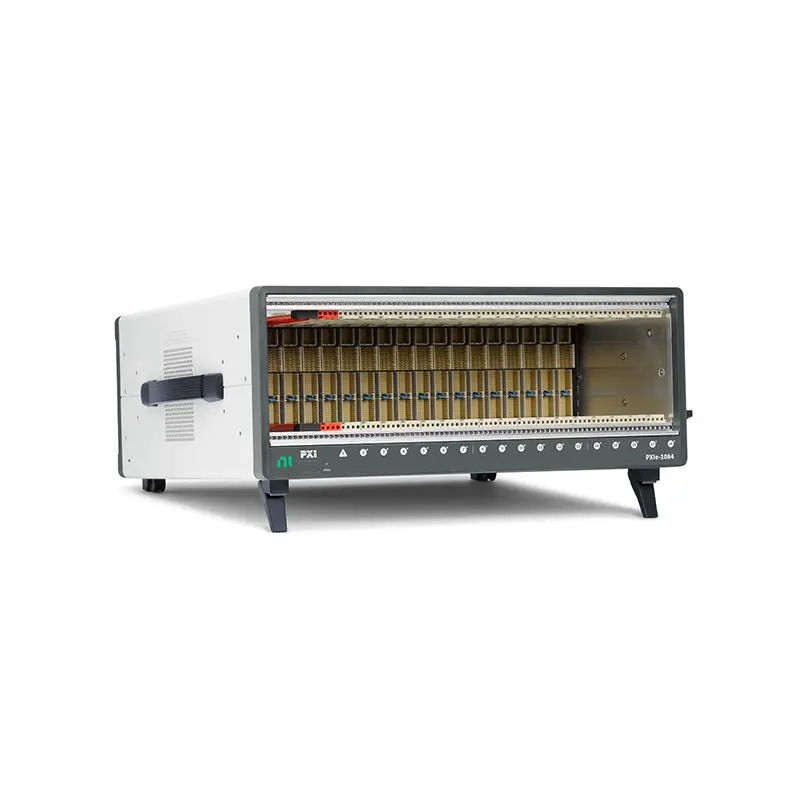

PXIe-1084

The PXIe-1084 features an all-hybrid backplane to meet a wide range of high-performance test and measurement application needs. It features a hybrid connector type in every peripheral slot, enabling flexibility in terms of instrumentation module placement. Additionally, the PXIe-1084 provides 58 W power and cooling as well as a timing and synchronization option that supports external clock and trigger routing.

Part Number(s): 784058-01 | 786397-01

Key Applications

1. Scalable Automated Test Systems (ATE)
PXIe-1084 is widely used in scalable automated test systems for electronics manufacturing and validation. Its large slot count allows integration of multiple instruments, enabling parallel testing and efficient system expansion.

2. High-Density Data Acquisition
It is ideal for applications requiring many synchronized measurement channels, such as structural monitoring, energy systems, and industrial diagnostics. The chassis ensures accurate timing across all modules.

3. RF and Communication System Testing
PXIe-1084 supports RF test configurations for signal generation and analysis, suitable for wireless communication technologies such as LTE, IoT, and general RF system validation.

4. Industrial and Embedded System Validation
Used in industrial environments for validating embedded systems, control units, and sensor networks, ensuring system stability and performance under real-world conditions.

5. Aerospace and Defense Applications
Applicable in aerospace and defense for subsystem testing, simulation, and electronic system validation, where reliability, synchronization, and expandability are critical.

6. Research and Development (R&D)
Engineering teams and research institutions use PXIe-1084 for prototyping and validation of complex systems requiring flexible configuration and multi-module synchronization.
