PXIe-1092

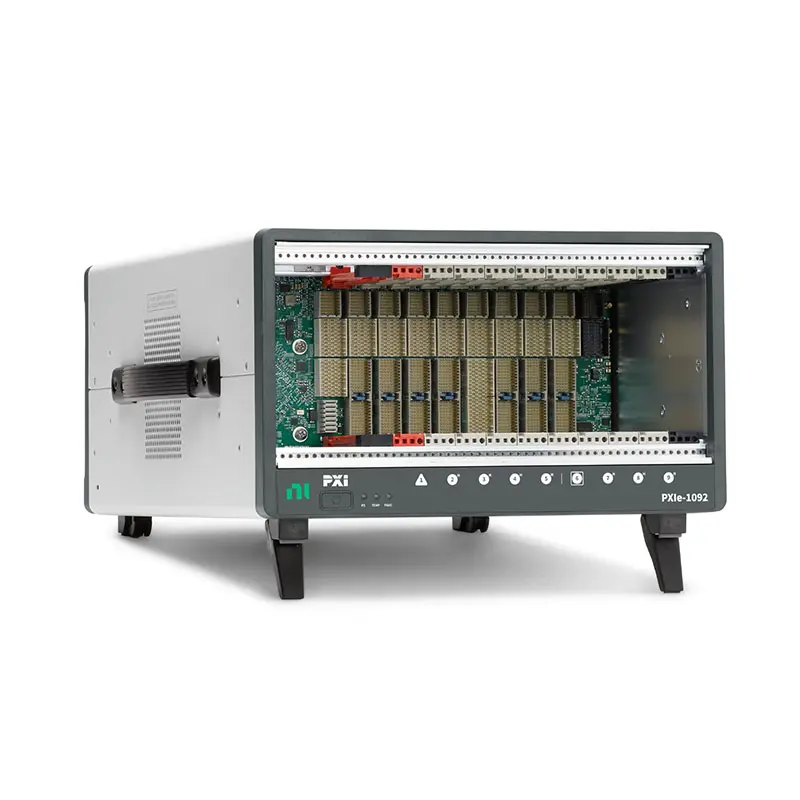

The PXIe-1092 features a high-bandwidth backplane and up to 82 W of power and cooling in every slot to meet a wide range of high-performance test and measurement application requirements. The all-hybrid backplane enables excellent flexibility for instrumentation module placement by accepting PXI Express modules in every slot and PXI hybrid-compatible modules in up to seven slots. It also offers a Timing and Synchronization option that includes a built-in oven-controlled crystal oscillator (OCXO) for increased clock accuracy and external clock and trigger routing. The chassis includes a peripheral expansion slot in Slot 10 to provide power only for multiple-slot wide modules.

Part Number(s): 786991-01 | 784781-01

Key Applications

1. Automated Test Systems (ATE)
PXIe-1092 is widely used in automated test setups for functional testing of electronic devices, PCBs, and subsystems. Its compact form factor makes it ideal for benchtop testing or small-to-medium scale production environments.

2. Portable and Distributed Test Systems
Due to its smaller size and lighter weight, PXIe-1092 is suitable for portable test systems and distributed measurement applications, especially where space is limited or mobility is required.

3. Data Acquisition and Signal Measurement
It supports multi-channel data acquisition for applications such as environmental monitoring, industrial diagnostics, and laboratory measurements, with reliable timing and synchronization capabilities.

4. RF and Communication Testing
PXIe-1092 can be integrated with RF modules for basic to mid-level wireless communication testing, including signal analysis and generation for technologies like IoT and general RF validation.

5. Industrial Automation and Control Validation
Used in industrial environments for control system testing, sensor validation, and system integration verification, helping ensure stable and accurate operation of automated processes.

6. Education and Research (R&D)
Its cost-performance ratio makes PXIe-1092 a practical choice for universities and research institutions conducting experiments, prototyping, and engineering validation projects.
