PXIe-2727

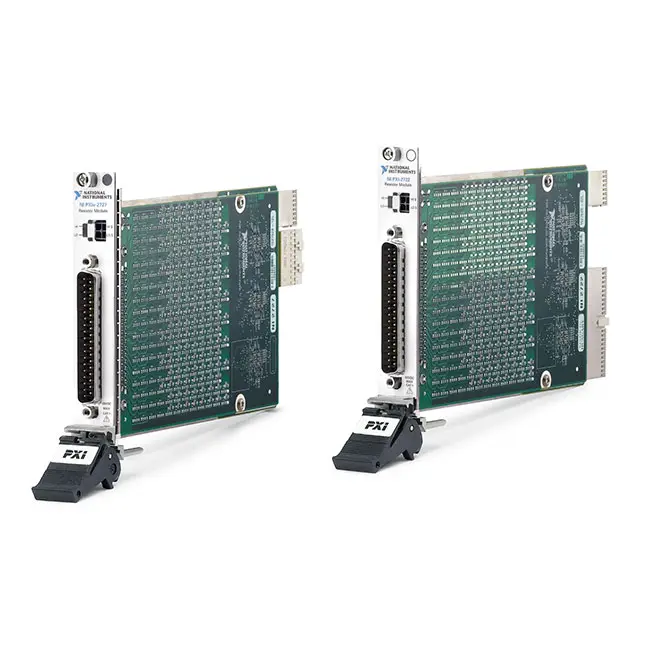

The PXIe‑2727 is a test module that replicates the behavior of resistance-based inputs and outputs such as potentiometers, resistance temperature detectors (RTDs), voltage dividers, and bridge elements. The PXIe‑2727 programmatically controls a series of relays to vary the resistance across each channel of an I/O connector. This function is well suited for simulating environmental conditions in hardware‑in‑the‑loop (HIL) validation. The software provides a simple user interface that accepts inputs in units of temperature or resistance and configures the resistance across each channel.

Part Number(s): 781986-27

Applications and Use Cases of PXIe-2727

The PXIe-2727 RF Multiplexer Switch Module is a high-frequency RF multiplexer switch module for PXI Express systems, designed to provide flexible routing of RF signals across multiple channels. It supports automated RF switching, signal multiplexing, and high-frequency test system integration, making it ideal for RF and microwave applications.

1. RF Signal Routing and Switching
PXIe-2727 is widely used to route RF signals between test instruments and devices under test (DUT), enabling flexible and automated signal paths.

2. Automated RF Test Systems (ATE)
It is commonly integrated into RF ATE systems for automated testing of wireless devices, RF components, and communication modules.

3. Wireless Communication Device Testing
Suitable for testing RF front-end modules, antennas, and communication systems across multiple signal paths.

4. RF Signal Multiplexing
The module allows multiple RF channels to be multiplexed into a single measurement instrument, improving test efficiency and reducing equipment costs.

5. Multi-Channel RF Measurement Systems
PXIe-2727 supports high-channel-count RF switching, enabling scalable and flexible RF measurement architectures.

6. Aerospace, Defense, and Radar Systems
Used in radar systems, electronic warfare, and other RF-intensive applications requiring reliable and repeatable signal routing.

7. Research, Development, and RF Prototyping
Widely used in R&D labs for RF system development, validation, and experimental testing involving high-frequency signals.
