PXIe-5105

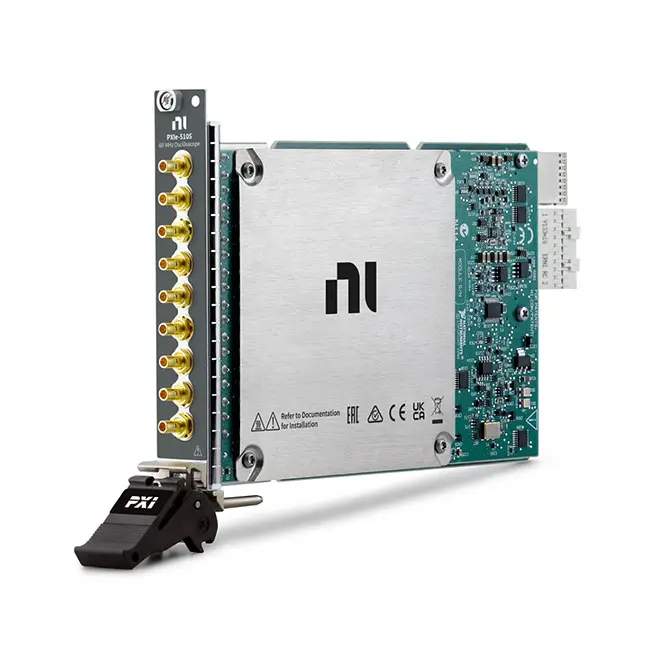

The PXIe‑5105 high-density PXI oscilloscope has eight simultaneously-sampled channels with flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with many channels that require up to 60 MS/s or 60 MHz of analog bandwidth. The PXIe‑5105 also features advanced PXI synchronization and data streaming capabilities.

Part Number(s): 783590-03 | 783590-02 | 783590-01

Applications and Use Cases of PXIe-5105

The PXIe-5105 High-Speed Digitizer is a high-speed digitizer for PXI Express systems, designed for reliable waveform acquisition and flexible signal analysis. It is suitable for applications that require good sampling performance, stable timing, and cost-effective signal measurement.

1. General Signal Acquisition
PXIe-5105 is used to capture analog waveforms and transient signals for general-purpose signal analysis and monitoring.

2. Communication Signal Analysis
It is applied in communication systems to evaluate signal integrity, timing behavior, and modulation characteristics.

3. Semiconductor & Electronic Testing
The module supports testing and validation of ICs and electronic components through waveform measurement.

4. Power Electronics Measurement
PXIe-5105 captures voltage and current waveforms in power systems, helping analyze switching behavior and transient responses.

5. Automated Test Equipment (ATE)
Integrated into automated test systems, it provides consistent and repeatable waveform acquisition for production testing.

6. Research & Educational Applications
Widely used in laboratories and educational environments for waveform analysis, circuit validation, and experimentation.

7. Fault Detection & Debugging
Engineers use the module to identify signal anomalies and timing issues for troubleshooting and system optimization.
