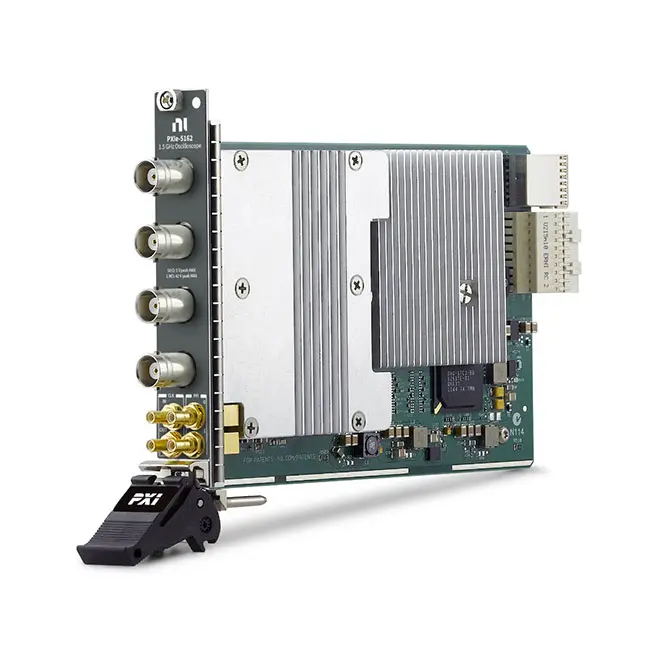

PXIe-5162

The PXIe-5162 high-speed oscilloscope device has two or four channels that sample at up to 5 GS/s with flexible settings for coupling, voltage range, and filtering. PXI Oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with fast signals that require up to 1.5 GHz of analog bandwidth and flexible measurement configurations. The PXIe-5162 also features a high-precision triggering circuit as well as PXI synchronization and data streaming capabilities. Some options also support CableSense™ technology, which can detect and locate signal path faults, changes, or discontinuities.

Part Number(s): 782622-16 | 782622-15 | 782622-11 | 782622-06 | 782622-05 | 782622-01

Applications and Use Cases of PXIe-5162

The PXIe-5162 High-Speed Digitizer is a high-speed digitizer for PXI Express systems, designed for accurate waveform capture and high-speed signal analysis. It is suitable for applications that require high sampling rates, reliable timing, and precise signal measurement.

1. High-Speed Signal Acquisition
PXIe-5162 captures fast analog waveforms and transient signals, enabling detailed analysis of high-frequency events.

2. Communication Signal Analysis
It is used to analyze communication signals, including modulation characteristics, signal integrity, and timing behavior.

3. Semiconductor & Mixed-Signal Testing
The module supports testing and validation of ICs, ADC/DACs, and mixed-signal devices through precise waveform measurement.

4. Power Electronics Testing
PXIe-5162 measures voltage and current waveforms in power systems, helping analyze switching behavior and transient responses.

5. Automated Test Equipment (ATE)
Integrated into automated test systems, it provides consistent and repeatable waveform acquisition for production testing.

6. Research & Development Applications
Widely used in laboratories for waveform analysis, circuit validation, and experimental measurements.

7. Fault Detection & Debugging
Engineers use the module to identify signal anomalies, glitches, and timing issues for troubleshooting and system optimization.
