PXIe-5745

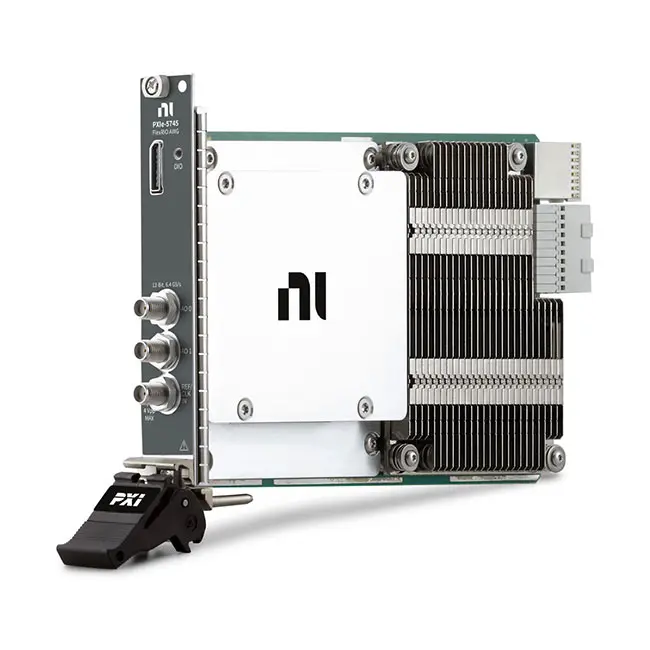

The PXIe-5745 enables direct RF generation up to 3 GHz with 12 bits of resolution. You can use it in a dual-channel mode at 3.2 GS/s for generation up to 1.5 GHz or in a single-channel wideband upconversion mode at 6.4 GS/s. The PXIe-5745 is ideal for applications that require high channel density IF signal generation with multichannel synchronization, including radar, electronic warfare, and communications. The FlexRIO driver includes support for generating predefined waveforms, and you can use the LabVIEW-programmable Xilinx Kintex UltraScale FPGA for dynamically creating waveforms, signal modulation/demodulation, and other custom real-time signal processing.

Applications and Use Cases of PXIe-5745

The PXIe-5745 FlexRIO Adapter Module is a FlexRIO adapter module designed for high-speed analog signal acquisition in PXI Express systems. When paired with a FlexRIO FPGA module, it enables wideband digitization, real-time processing, and custom RF/IF signal handling, making it ideal for advanced communication, radar, and high-frequency test applications.

1. Wideband RF/IF Signal Acquisition
PXIe-5745 captures high-frequency analog signals with high sampling rates, suitable for RF and intermediate frequency (IF) applications.

2. Software-Defined Radio (SDR) Systems
Used as the front-end digitizer in SDR systems, enabling flexible RF signal capture and processing when combined with FPGA modules.

3. Radar & Electronic Warfare Systems
Applied in radar receivers and electronic warfare systems requiring high-speed data capture and real-time signal analysis.

4. Spectrum Monitoring & Signal Intelligence (SIGINT)
Supports wideband spectrum sensing, signal detection, and classification across large frequency ranges.

5. High-Speed Data Acquisition Systems
Used in systems requiring real-time acquisition of fast-changing signals, including transient and high-frequency events.

6. Automated Test Equipment (ATE)
Integrated into advanced test systems for RF testing, signal analysis, and high-speed measurement.

7. Research & Advanced Prototyping
Widely used in research labs for RF system development, algorithm validation, and high-performance signal processing.
