PXIe-5820

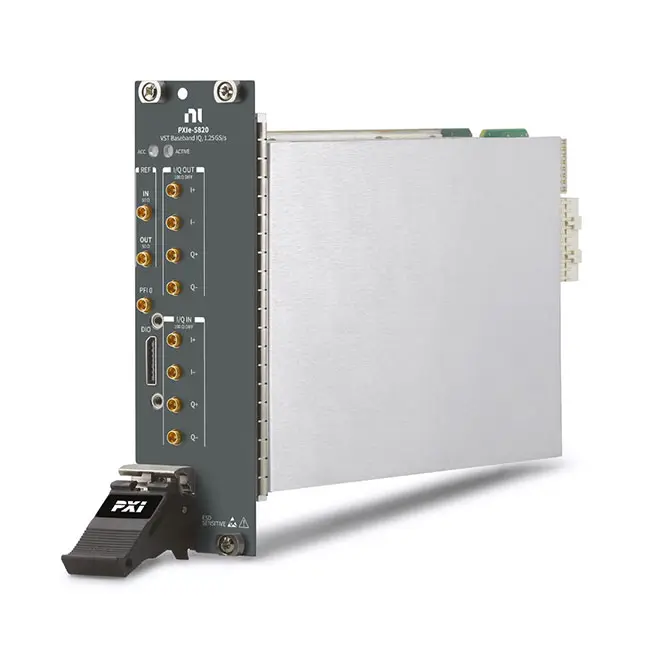

The PXIe‑582 is the baseband model of the second-generation vector signal transceiver (VST) with 1 GHz of complex I/Q bandwidth. It combines a wideband I/Q digitizer, wideband I/Q arbitrary waveform generator, and high-performance user-programmable FPGA in a single 2-slot PXI Express module. You can use the VST for a variety of applications including baseband I/Q test of wireless and cellular chipsets; envelope tracking of digitally predistorted waveforms for power amplifiers; and the generation and analysis of new wireless standards such as 5G, 802.11ax, and LTE-Advanced Pro.

Applications and Use Cases of PXIe-5820

The PXIe-5820 Vector Signal Transceiver (VST) is a PXI Express vector signal transceiver (VST) that integrates RF signal generation and RF signal analysis into a single instrument. It is designed for mid-to-high performance RF testing, wireless communication validation, and real-time signal processing, making it ideal for cost-effective yet powerful RF test systems.

1. Wireless Communication Testing (LTE/5G/Wi-Fi)
PXIe-5820 is used to test modern wireless standards, including modulation quality, bandwidth performance, and RF signal integrity.

2. RF Signal Generation & Analysis (VST)
Combines signal generator and analyzer functions, enabling closed-loop testing and reducing system complexity.

3. RF Device Characterization
Used to evaluate RF components such as amplifiers, mixers, and transceivers, analyzing parameters like gain, linearity, and distortion.

4. Spectrum Monitoring & RF Analysis
Supports spectrum analysis, signal detection, and RF environment monitoring.

5. Automated Test Equipment (ATE)
Integrated into RF ATE systems for production testing and validation of communication devices.

6. Radar & Advanced RF Systems
Applied in radar prototyping and advanced RF applications requiring signal generation and analysis.

7. Research & Development Applications
Used in labs for RF system development, waveform design, and communication research.
