PXIe-6355

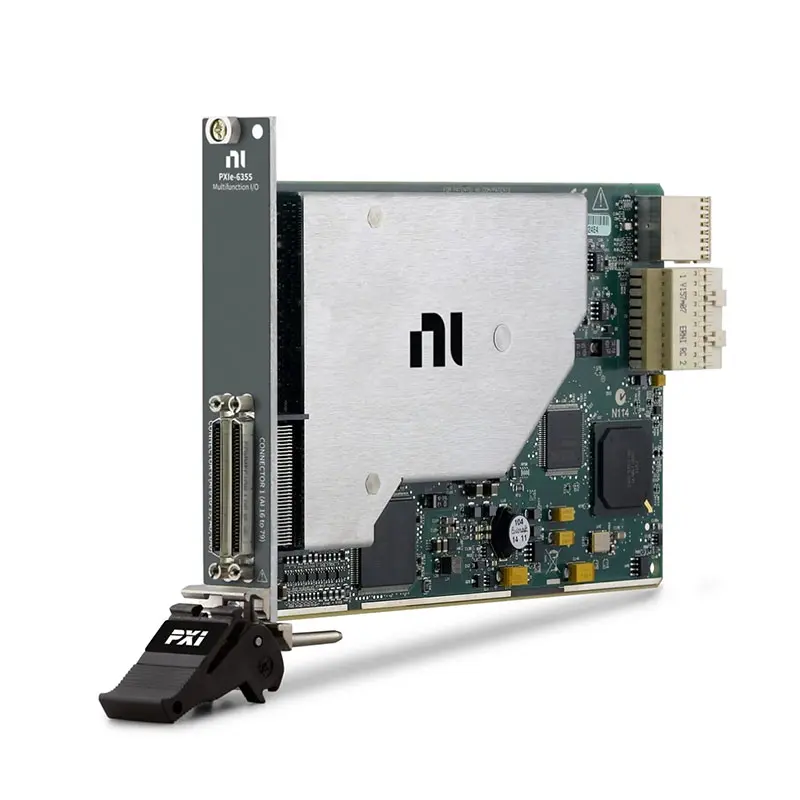

The PXIe‑6355 offers analog I/O, digital I/O, and four 32‑bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe‑6355 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 783632-01

Applications and Use Cases of PXIe-6355

The PXIe-6355 Multifunction I/O Module is a multifunction data acquisition (DAQ) module for PXI Express systems. It combines analog input, analog output, digital I/O, and counter/timer capabilities in one module, making it suitable for versatile test, measurement, monitoring, and control applications across industrial and research environments.

Key Applications

1. General-Purpose Data Acquisition (DAQ)
PXIe-6355 is widely used for collecting analog and digital signals from sensors, instruments, and electronic systems in laboratory, industrial, and engineering applications.

2. Sensor and Signal Measurement
It is suitable for measuring signals from temperature, pressure, voltage, current, displacement, and other sensor outputs for real-time monitoring and analysis.

3. Industrial Automation and Process Control
With integrated analog and digital I/O, PXIe-6355 is commonly used for process monitoring, actuator control, feedback loops, and automation validation.

4. Digital I/O and Embedded Device Testing
The module supports digital signal generation and acquisition, making it useful for testing logic circuits, switches, relays, microcontroller interfaces, and embedded systems.

5. Counter/Timer and Motion Applications
Its built-in counter/timer functionality enables encoder measurements, pulse generation, event counting, frequency measurement, and motion-related testing.

6. Hardware-in-the-Loop (HIL) Simulation
PXIe-6355 is often integrated into HIL simulation platforms where analog and digital signals must be generated and acquired simultaneously to emulate real-world system behavior.

7. Research, Education, and Prototyping
It is commonly used in universities, R&D labs, and engineering teams for prototype development, experimental setups, and flexible validation systems.
