PXIe-6376

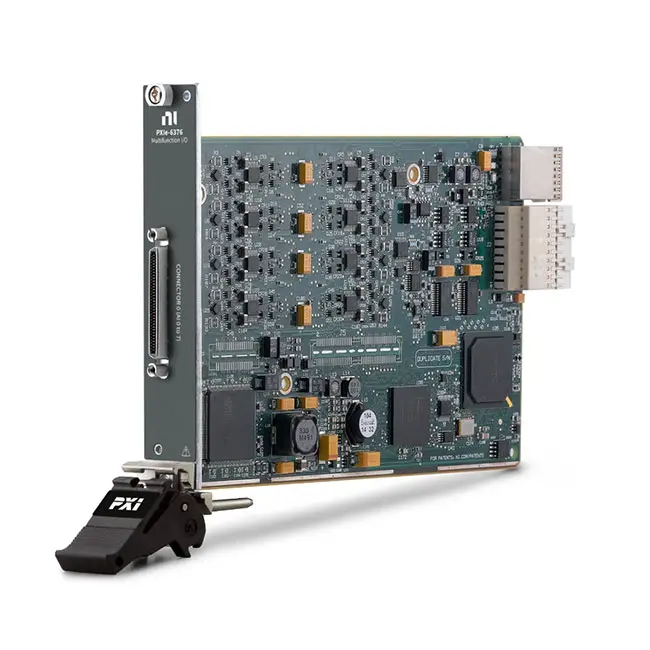

The PXIe‑6376 is a simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, four 32‑bit counters, and analog and digital triggering. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe‑6376 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 781475-01

Applications and Use Cases of PXIe-6376

The PXIe-6376 Multifunction I/O Module is a high-performance multifunction data acquisition (DAQ) module for PXI Express systems. It integrates analog input, analog output, digital I/O, and counter/timer capabilities into a single module, making it well-suited for versatile test, measurement, monitoring, and control applications that require reliable performance and flexibility.

1. High-Speed Data Acquisition (DAQ)
PXIe-6376 is widely used for acquiring analog and digital signals from sensors, instruments, and electronic systems, providing accurate and high-speed data capture for various engineering applications.

2. Sensor and Signal Measurement
It supports measurement of signals such as voltage, current, temperature, pressure, displacement, and vibration, making it ideal for monitoring and analysis in industrial and laboratory environments.

3. Industrial Automation and Process Control
With integrated I/O capabilities, PXIe-6376 is suitable for process monitoring, actuator control, closed-loop systems, and automation validation in industrial applications.

4. Digital I/O and Embedded System Testing
The module enables digital signal acquisition and generation, useful for testing logic circuits, embedded systems, relays, switches, and control interfaces.

5. Counter/Timer and Motion Applications
Its counter/timer functionality supports encoder measurements, pulse generation, event counting, frequency measurement, and motion control verification.

6. Hardware-in-the-Loop (HIL) Simulation
PXIe-6376 is commonly used in HIL systems to simulate real-world signals through synchronized analog and digital I/O for system validation.

7. Research, Development, and Prototyping
It is widely adopted in R&D labs, universities, and engineering teams for system prototyping, validation, and experimental testing requiring multifunction capabilities.
