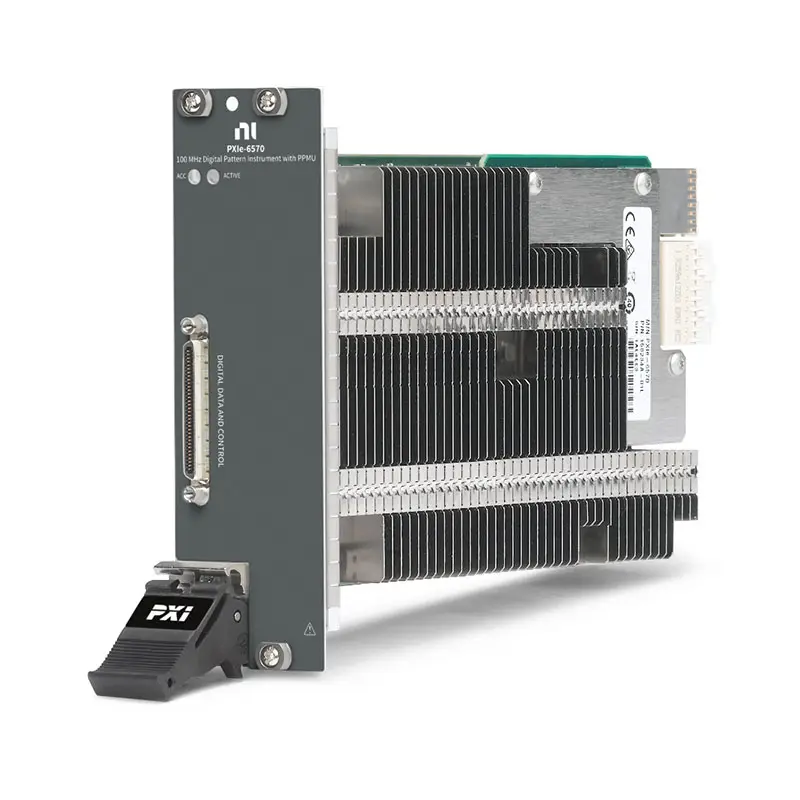

PXIe-6570

The PXIe‑6570 is designed for semiconductor characterization and production test. It includes the Digital Pattern Editor for configuring pin maps, specifications, levels, timing, and patterns. The PXIe‑6570 also includes debugging tools like Shmoo, digital scope, and viewers for history RAM, pin states, and system status.

Part Number(s): 785283-01

Applications and Use Cases of PXIe-6570

The PXIe-6570 Digital Pattern Instrument is a high-speed digital pattern instrument for PXI Express systems, designed for functional test, validation, and high-speed digital interface verification. It provides precise digital pattern generation and capture with accurate timing control, making it suitable for semiconductor and electronics testing environments.

1. Semiconductor Functional Testing
PXIe-6570 is widely used for testing digital ICs, ASICs, FPGAs, and memory devices by generating and capturing digital patterns to verify functionality and performance.

2. High-Speed Digital Interface Validation
It is suitable for validating digital interfaces such as LVDS, CMOS, and other high-speed communication protocols, ensuring timing accuracy and signal integrity.

3. Digital Pattern Generation and Capture
The module can generate complex digital test patterns and capture DUT responses, enabling detailed analysis and debugging.

4. Automated Test Equipment (ATE)
PXIe-6570 is commonly used in ATE systems for high-throughput production testing of electronic devices.

5. Embedded System and PCB Validation
It is used for testing embedded systems, digital subsystems, and printed circuit boards during development and production.

6. Hardware-in-the-Loop (HIL) Simulation
The module can simulate digital environments and validate system responses in real time.

7. Research, Development, and Digital System Debugging
PXIe-6570 is widely used in R&D labs for digital system validation, debugging, and advanced testing applications.
