PXIe-6571

The PXIe‑6571 helps you perform semiconductor validation, characterization, and production test. It includes the Digital Pattern Editor for configuring pin maps, specifications, levels, timing, and patterns. Additionally, the PXIe-6571 includes debugging tools such as Shmoo, digital scope, and viewers for RAM history, pin states, and system status. The 32-channel option for the PXIe-6571 requires a chassis with a cooling capacity of 82 W for each slot, such as the PXIe-1095 PXI Chassis, while the 8-channel option for the PXIe-6571 can be used in chassis with a cooling capacity of 58 W for each slot, such as the PXIe-1084 PXI Chassis.

Part Number(s): 786320-01 | 786320-02

Applications and Use Cases of PXIe-6571

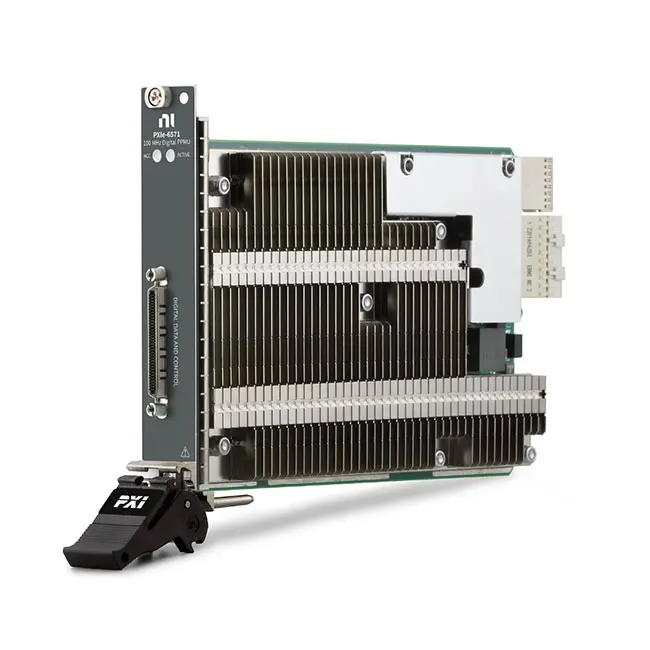

The PXIe-6571 Digital Pattern Instrument is a high-speed digital pattern instrument for PXI Express systems, designed for digital functional test, validation, and high-speed digital interface verification. It provides high-speed digital I/O channels with precise timing, pattern generation, and capture capabilities, making it ideal for semiconductor and electronic device testing.

1. Semiconductor Functional Testing
PXIe-6571 is widely used for testing digital ICs, ASICs, FPGAs, and memory devices by generating and capturing digital patterns to verify functionality.

2. High-Speed Digital Interface Validation
It is suitable for validating interfaces such as LVDS, CMOS, and other high-speed digital communication protocols, ensuring signal integrity and timing accuracy.

3. Digital Pattern Generation and Capture
The module can generate complex digital test patterns and capture responses, enabling detailed analysis of device behavior under test.

4. Hardware-in-the-Loop (HIL) and System Simulation
PXIe-6571 is used in HIL systems to simulate digital environments and validate system responses in real time.

5. Production Test and Automated Test Equipment (ATE)
It is commonly integrated into automated test systems for production environments, supporting high-throughput testing of electronic components and systems.

6. Embedded System and PCB Validation
The module is useful for testing embedded systems, printed circuit boards (PCBs), and digital subsystems during development and validation phases.

7. Research and Development Applications
PXIe-6571 is widely adopted in R&D labs for digital system design validation, debugging, and advanced testing applications.
