PXIe-6614

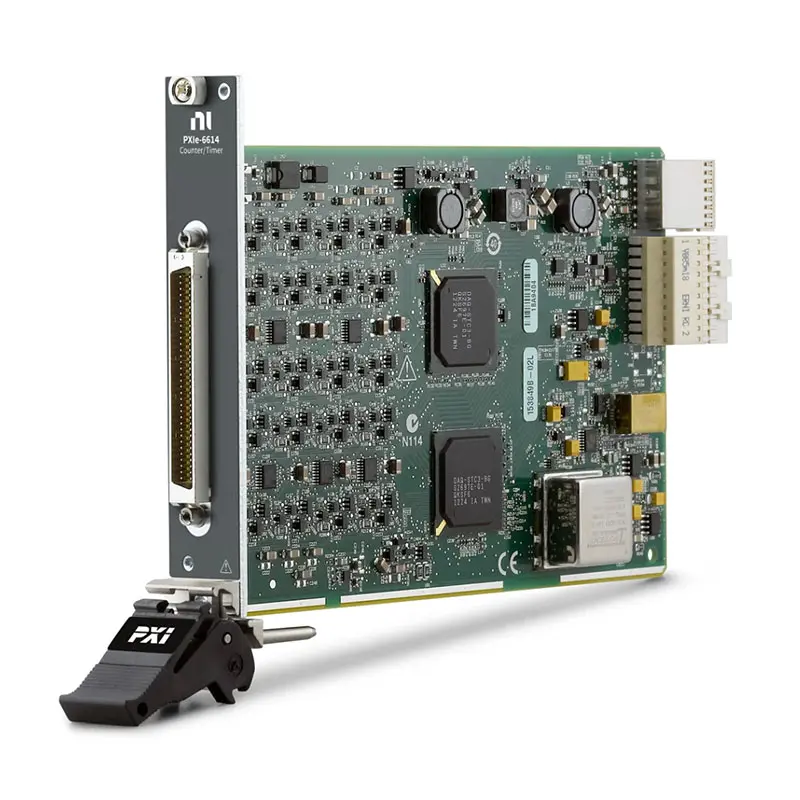

The PXIe‑6614 is a high-precision counter/timer module that performs encoder position measurement, event counting, period measurement, pulse-width measurement, pulse generation, pulse-train generation, and frequency measurement. It features eight counter/timers, digital debouncing filters, and TTL/CMOS‑compatible digital I/O. The PXIe‑6614 offers industrially rugged features for a wide array of applications such as automotive/aerospace, industrial/motion control, and manufacturing test. Measurements are highly accurate and precise over longer periods of time because of the oven‑controlled crystal oscillator (OCXO) in the module.

Part Number(s): 782353-01

Applications and Use Cases of PXIe-6614

The PXIe-6614 Counter/Timer Module is a high-performance counter/timer module for PXI Express systems. It provides multiple high-speed counters, digital I/O lines, and precise timing capabilities, making it ideal for applications that require accurate event timing, pulse generation, and measurement of digital signals.

1. Event Counting and Frequency Measurement
PXIe-6614 is widely used for counting digital events, measuring frequency, period, and pulse width, making it suitable for applications involving sensors and digital signals.

2. Encoder and Position Measurement
It supports quadrature encoder inputs, enabling accurate position, speed, and direction measurement in motion control systems.

3. Pulse Generation and Timing Control
The module can generate precise pulse trains, PWM signals, and timing signals for synchronization and control applications.

4. Industrial Automation and Motion Control
PXIe-6614 is commonly used in automation systems for controlling motors, drives, and actuators, as well as monitoring system feedback.

5. Hardware Synchronization and Triggering
It can be used to synchronize multiple instruments and systems by generating and responding to triggers and timing signals.

6. Hardware-in-the-Loop (HIL) Simulation
The module is suitable for HIL applications where accurate timing and deterministic digital I/O are required.

7. Research, Development, and Engineering Applications
PXIe-6614 is widely used in research labs and engineering environments for testing timing systems, validating designs, and developing measurement solutions.
