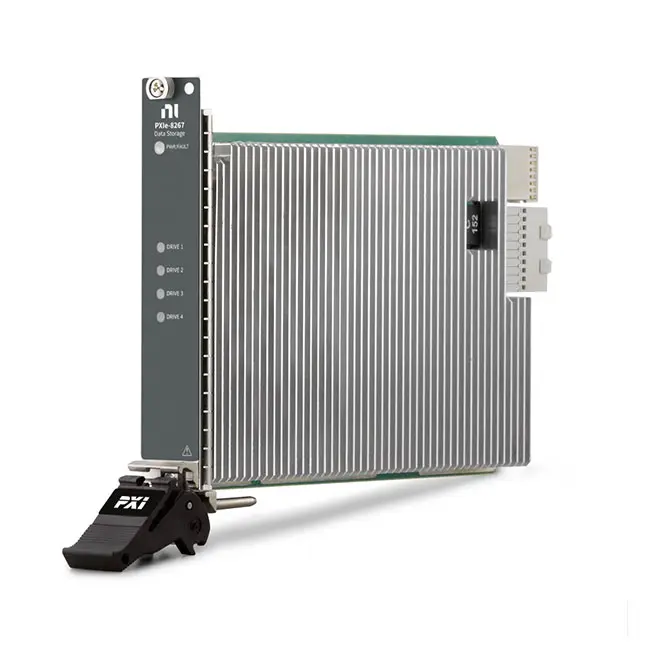

PXIe-8267

The PXIe-8267 PXI Express high-speed data storage module features large-capacity, high-throughput storage in a single PXI Express slot. With M.2 solid-state drives, the PXIe-8267 is ideal for stream-to-disk or stream-from-disk applications requiring sustained, reliable data throughput such as high-speed signal intelligence, RF record and playback, and multi-sensor data acquisitions systems.

Part Number(s): 785308-01

Applications and Use Cases of PXIe-8267

The PXIe-8267 MXI-Express Remote Controller Module is a high-performance MXI-Express interface module that enables a PXI Express chassis to be remotely controlled by an external PC. It provides a high-bandwidth PCI Express connection over copper or fiber links, allowing the PXI system to function as an extension of the host computer.

1. Remote PXI System Control
PXIe-8267 allows a desktop or rack-mounted PC to control a PXI Express chassis remotely, making it ideal for setups where the chassis must be located away from the operator.

2. High-Speed Data Transfer
With PCIe-based communication, the module supports high-throughput data transfer between the host PC and PXI system, suitable for data-intensive applications.

3. Distributed Test and Measurement Systems
It enables distributed test architectures where measurement hardware is placed near the device under test (DUT) while the control PC is located in a separate control room.

4. Automated Test Equipment (ATE)
PXIe-8267 is commonly used in ATE systems to connect PXI instruments to a central controller, improving flexibility and scalability of test systems.

5. Industrial and Harsh Environment Deployment
The module allows the PXI chassis to be deployed in harsh or space-constrained environments while keeping the host PC in a safe and controlled location.

6. High-Performance Data Acquisition Systems
It is suitable for systems requiring high-speed data streaming from PXI modules to a host PC for real-time processing and analysis.

7. Research, Development, and System Integration
PXIe-8267 is widely used in R&D environments for building flexible, scalable, and high-performance PXI-based test and measurement systems.
