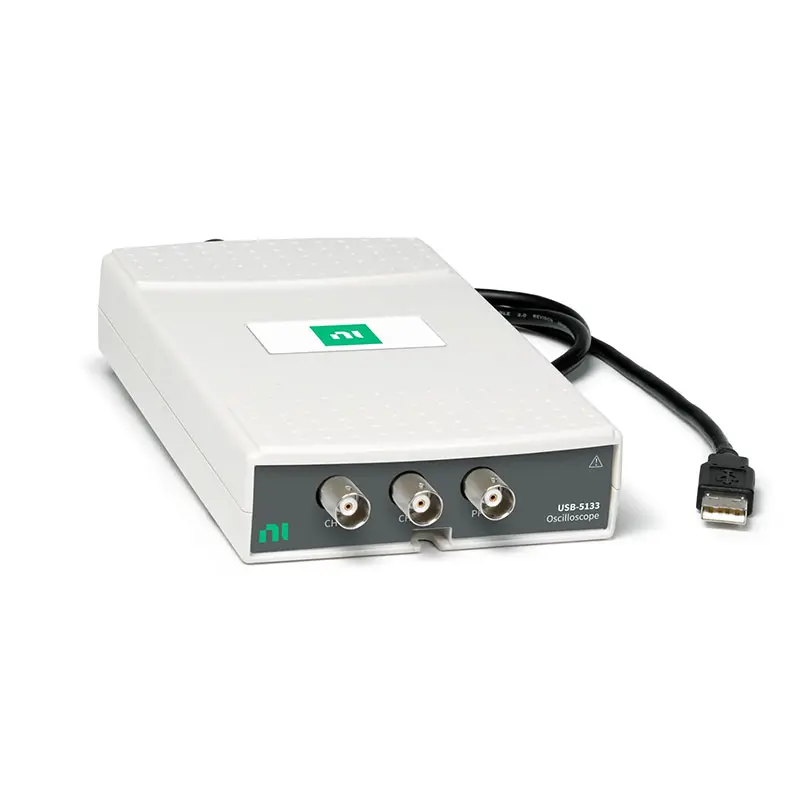

USB-5133

The USB-5133 low-cost oscilloscope device has two channels that sample up to 100 MS/s with flexible settings for coupling, impedance, voltage range, and filtering. Oscilloscope devices also feature a number of triggering modes and an instrument driver that includes data streaming and analysis functions. This device is ideal for portable and benchtop applications with fast signals that require flexible measurement configurations and up to 50 MHz of analog bandwidth.

Applications and Use Cases of USB-5133

The USB-5133 High-Speed Digitizer is a high-speed USB digitizer designed for high-accuracy waveform acquisition and advanced signal analysis. It provides high sampling rates, deep memory, and reliable performance, making it suitable for demanding measurement and testing applications.

1. High-Speed Signal Acquisition
USB-5133 is used to capture high-frequency and transient analog signals, enabling detailed waveform analysis and signal characterization.

2. Communication Signal Analysis
It is applied in communication systems to analyze modulation performance, signal integrity, and timing characteristics.

3. Semiconductor & Electronic Testing
The device supports validation and testing of ICs, mixed-signal devices, and electronic components through precise waveform capture.

4. Power Electronics Measurement
USB-5133 measures voltage and current waveforms in power systems, helping analyze switching behavior, ripple, and transient responses.

5. Portable Test & Measurement
With USB connectivity, it is suitable for portable setups and on-site testing where flexibility is required.

6. Research & Laboratory Applications
Widely used in laboratories for advanced signal analysis, circuit validation, and experimental measurements.

7. Fault Detection & Debugging
Engineers use the device to detect signal distortions, glitches, and timing issues for troubleshooting and optimization.
