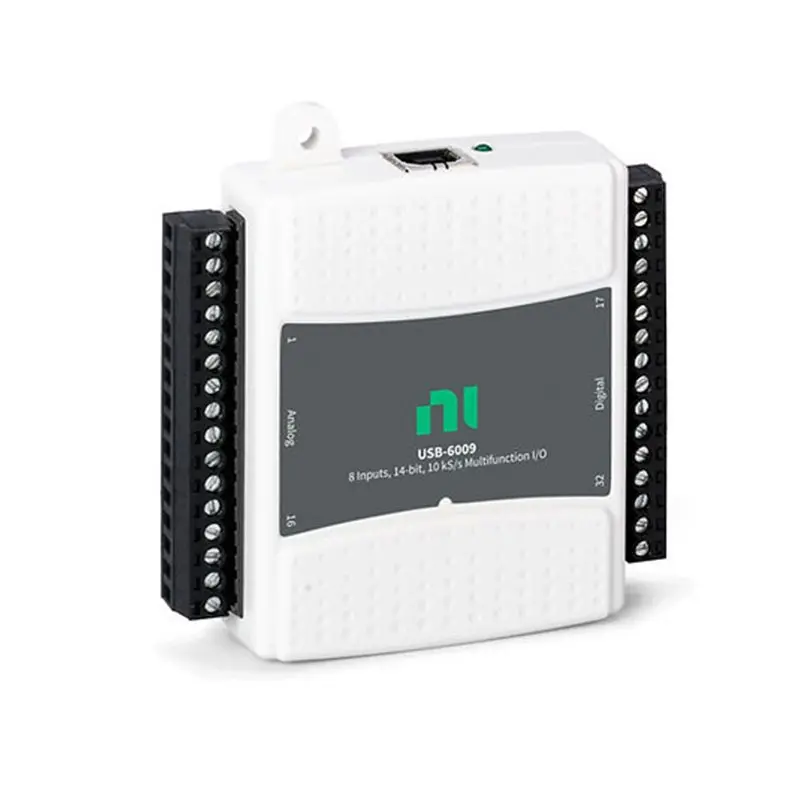

USB-6009

The USB‑6009 is a low-cost, multifunction DAQ device. It offers analog I/O, digital I/O, and a 32‑bit counter. The USB‑6009 provides basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments. The device features a lightweight mechanical enclosure and is bus powered for easy portability. You can easily connect sensors and signals to the USB‑6009 with screw-terminal connectivity. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 779719-01

Applications and Use Cases of USB-6009

The USB-6009 Multifunction DAQ Device is a low-cost, multifunction data acquisition device designed for basic measurement, control, and educational applications. It offers analog input, digital I/O, and simple control capabilities, making it ideal for entry-level and general-purpose use.

1. Basic Data Acquisition
USB-6009 is used to measure voltage and simple analog signals for monitoring and analysis in small-scale applications.

2. Educational & Training Applications
Widely used in universities and training labs for teaching data acquisition, signal measurement, and LabVIEW-based experiments.

3. Sensor Measurement
It can interface with sensors such as temperature, light, and position sensors for basic data collection and monitoring.

4. Simple Automation & Control
USB-6009 provides digital I/O for controlling LEDs, relays, and small devices in simple automation systems.

5. Embedded System Prototyping
Used in early-stage development to test and validate signal inputs/outputs in embedded and control systems.

6. Laboratory & Experimentation
Suitable for small lab experiments requiring affordable and easy-to-use measurement tools.

7. Data Logging Applications
Can be used for low-speed data logging and long-term monitoring of basic signals.
