USB-6451
$2,299.00
Item details
Supported Power Input: Bus Powered
Maximum Number of Single-Ended Analog Input Channels: 16
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 1 MS/s/ch
Simultaneous Sampling: Yes
Analog Input Resolution: 20 bits
Bus Connector: USB C
Number of Analog Output Channels: 2
Maximum Update Rate: 250 kS/s/ch
Number of Bidirectional Digital Channels: 16
Number of Counters/Timers: 4
Analog Input Absolute Accuracy: 1.3 mV
Analog Input FIFO Buffer Size: 8191 samples
Analog Input Isolation: –
16
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

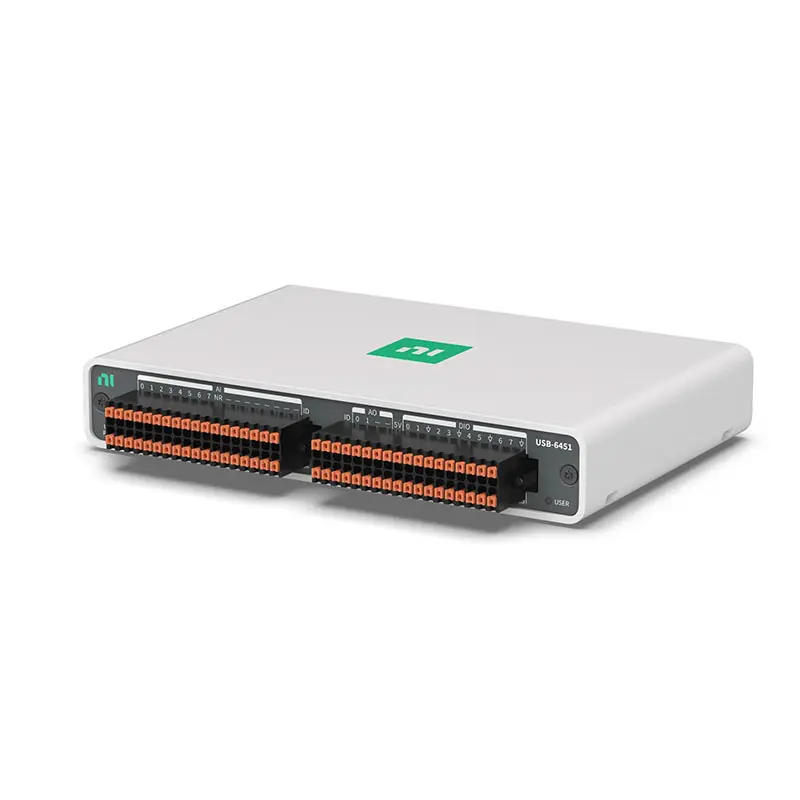

USB-6451 Multifunction I/O Device
20-bit, 1MS/s/ch (16 AI, 2 AO, 16 DIO) mioDAQ, USB Multifunction I/O Device
The USB-6451 is a USB Type-C bus-powered mioDAQ device with analog I/O, digital I/O, and four counters. It features 8 simultaneous sampling analog-to-digital converters (ADCs) with four input range settings from ± 200 mV to ± 10 V, to help you optimize the resolution of your measurements. The analog output channels can output ± 10 V with update rates of 250 kS/s/ch. Additionally, the USB-6451 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10 MHz, or as triggers, clocks, or I/O for the four onboard counters. The USB-6451 also supports FlexLogger Lite, free data acquisition software from NI, and includes documented APIs and examples for LabVIEW, Python, C/C++, and more.
Applications and Use Cases of USB-8502
The USB-8502 CAN Interface Device is a USB-based CAN interface device designed for Controller Area Network (CAN) communication, monitoring, and control. It provides reliable and flexible CAN connectivity, making it suitable for automotive, industrial, and embedded system applications.
1. CAN Bus Communication
USB-8502 is used to transmit and receive CAN messages, enabling communication between ECUs and networked devices.
2. Automotive ECU Testing
Widely used for testing and validating electronic control units (ECUs), including diagnostics and functional verification.
3. CAN Network Monitoring & Diagnostics
Allows real-time monitoring of CAN traffic, helping engineers analyze communication behavior and detect faults.
4. Hardware-in-the-Loop (HIL) Simulation
Used in HIL systems to simulate CAN communication for real-time system testing and validation.
5. Industrial CAN Communication
Supports CAN-based communication in industrial automation systems for reliable data exchange.
6. Automated Test Equipment (ATE)
Integrated into automated test systems to provide CAN communication for device testing and validation.
7. Research & Embedded System Development
Used in R&D environments for developing, testing, and validating CAN-based embedded systems.
Part Number(s): 789889-01 | 789888-01
