USB-6453
$3,199.00
Item details
Supported Power Input: Bus Powered
Maximum Number of Single-Ended Analog Input Channels: 32
Maximum Number of Differential Analog Input Channels: 16
Maximum Sample Rate: 1 MS/s/ch
Simultaneous Sampling: Yes
Analog Input Resolution: 20 bits
Bus Connector: USB C
Number of Analog Output Channels: 4
Maximum Update Rate: 250 kS/s/ch
Number of Bidirectional Digital Channels: 16
Number of Counters/Timers: 4
Analog Input Absolute Accuracy: 1.3 mV
Analog Input FIFO Buffer Size: 8191 samples
Analog Input Isolation: –
18
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

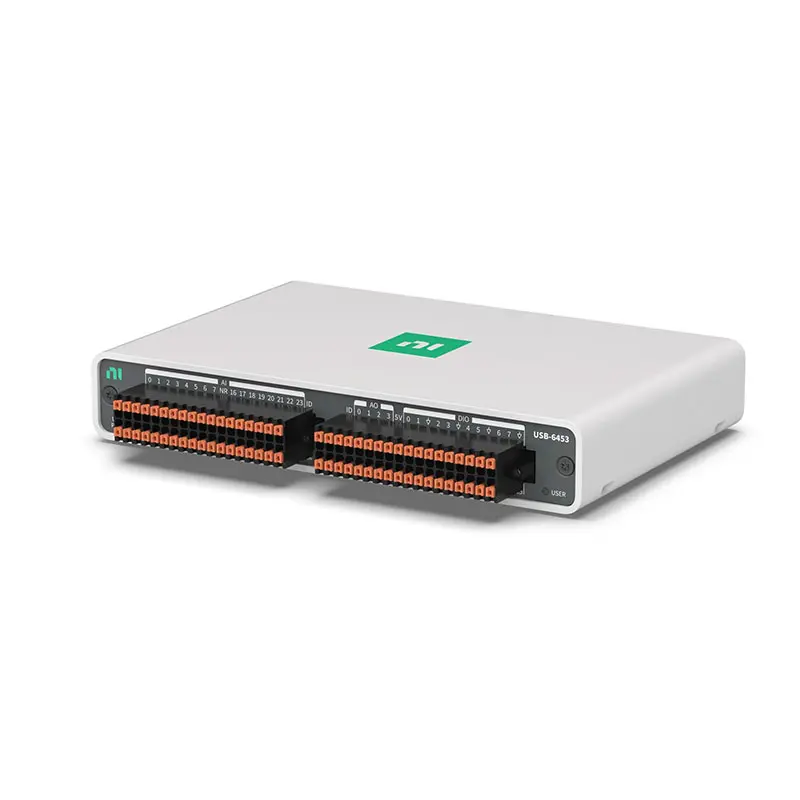

USB-6453 Multifunction I/O Device
20-bit, 1MS/s/ch (32 AI, 4 AO, 16 DIO) mioDAQ, USB Multifunction I/O Device
The USB-6453 is a USB Type-C bus-powered mioDAQ device with analog I/O, digital I/O, and four counters. It features 16 simultaneous sampling analog-to-digital converters (ADCs) with four input range settings from ± 200 mV to ± 10 V, to help you optimize the resolution of your measurements. The analog output channels can output ± 10 V with update rates of 250 kS/s/ch. Additionally, the USB-6453 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10 MHz, or as triggers, clocks, or I/O for the four onboard counters. The USB-6453 also supports FlexLogger Lite, free data acquisition software from NI, and includes documented APIs and examples for LabVIEW, Python, C/C++, and more.
Applications and Use Cases of USB-6453
The USB-6453 High-Speed Digital I/O Device is a high-performance digital I/O device designed for high-speed digital signal generation and acquisition. It provides deterministic timing and reliable digital interfacing, making it suitable for applications that require fast data transfer and precise digital control.
1. High-Speed Digital Data Acquisition
USB-6453 captures high-speed digital signals, enabling accurate analysis of fast-changing digital data and system behavior.
2. Digital Pattern Generation
It generates deterministic digital patterns for testing digital devices, interfaces, and communication systems.
3. Semiconductor & Digital Device Testing
The device is used to test ICs, FPGAs, and memory devices by applying and capturing digital signals.
4. Embedded System & PCB Validation
USB-6453 verifies digital functionality and timing behavior in embedded systems and circuit boards.
5. Automated Test Equipment (ATE)
Integrated into automated test systems for high-speed digital signal testing and production validation.
6. Hardware-in-the-Loop (HIL) Simulation
Used in HIL systems to simulate digital inputs and outputs in real time for system-level testing.
7. Digital System Debugging
Engineers use the device to analyze and troubleshoot digital interfaces, timing issues, and signal integrity problems.
Part Number(s): 789883-01 | 789884-01
