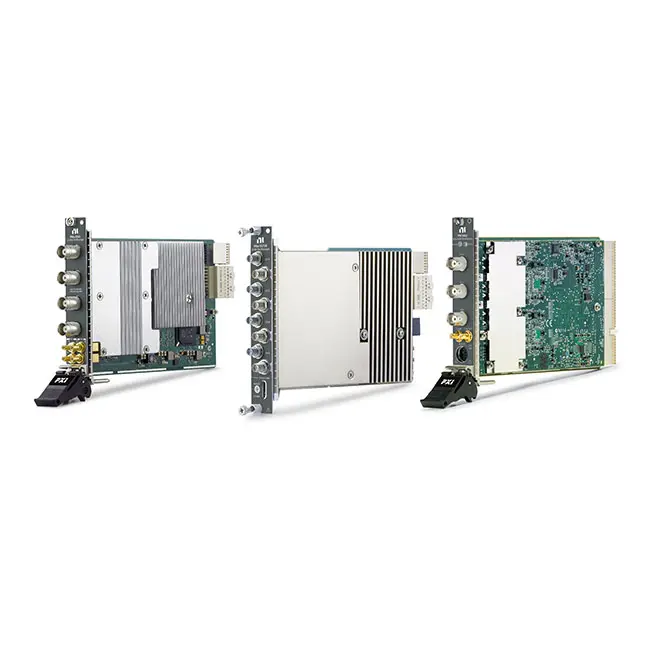

PXI-5922

The PXI‑5922 high-resolution oscilloscope features a flexible measurement resolution range up to 24 bits, with up to 114 dBc spurious‑free dynamic range (SFDR), and up to 15 MS/s rates. This PXI oscilloscope has flexible settings for coupling and voltage range, as well as a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. The PXI‑5922 is capable of taking extremely resolute and accurate analog measurements. It is ideal for audio signals, spectrum analysis, and other small, accurate signal measurements. The PXI‑5922 also features PXI synchronization and data streaming capabilities.

Part Number(s): 779153-03 | 779153-02 | 779153-01

Applications and Use Cases of PXI-5922

The PXI-5922 FlexRIO Digitizer Module is a high-resolution digitizer module for PXI systems, designed for precision signal acquisition and FPGA-based real-time processing. It is widely used in applications that require high accuracy, flexibility, and custom signal analysis.

1. Advanced Signal Acquisition & Analysis
PXI-5922 is used for capturing high-resolution analog signals where standard DAQ devices are not sufficient. With FPGA support, users can implement custom triggering, filtering, and real-time processing.

2. Communication & RF Testing
It is applied in baseband and intermediate frequency (IF) signal analysis, supporting modulation analysis, signal integrity verification, and communication system validation.

3. Power Electronics & Energy Systems
The module is used to analyze waveforms in power converters, inverters, and power devices. Its high resolution allows detection of small signal variations, noise, and transient behavior.

4. Industrial Monitoring & Condition Analysis
PXI-5922 captures detailed electrical signals from industrial equipment to analyze harmonics, transients, and anomalies for predictive maintenance and diagnostics.

5. Research & Scientific Applications
Widely used in laboratories for physics experiments, precision instrumentation, and sensor signal analysis, enabling highly customized measurement systems.

6. Automated Test Equipment (ATE)
Integrated into automated test systems for accurate signal acquisition and performance validation in production environments.

7. Hardware-in-the-Loop (HIL) Systems
Used in HIL applications to provide real-time signal acquisition and processing for system-level testing and validation.
