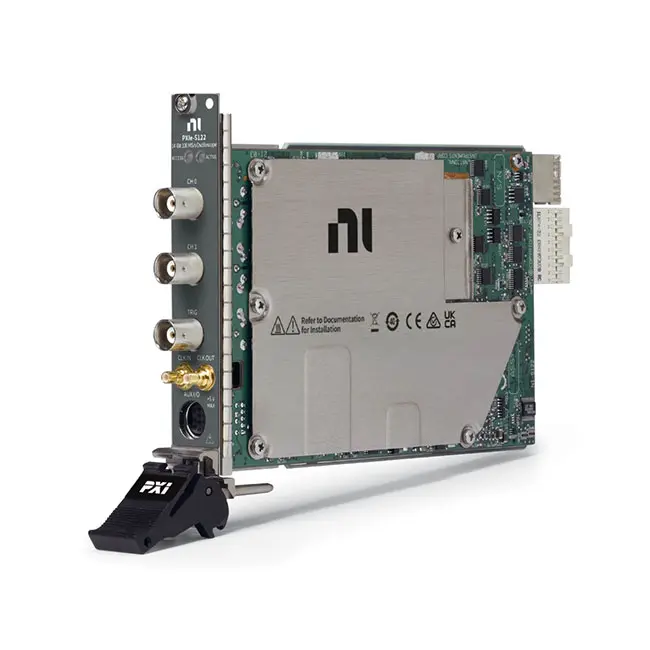

PXIe-5122

The PXIe‑5122 high-resolution PXI oscilloscope has two channels with greater than 75 dBc spurious‑free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 10 MS/s and 10 MHz of analog bandwidth. The PXIe‑5122 also features advanced PXI synchronization and data streaming capabilities.

Part Number(s): 779967-03 | 779967-02 | 779967-01

Applications and Use Cases of PXIe-5122

The PXIe-5122 High-Speed Digitizer is a high-speed digitizer for PXI Express systems, designed for accurate waveform acquisition and high-speed signal analysis. It is widely used in applications requiring high sampling rates, precise timing, and reliable signal capture.

1. High-Speed Signal Acquisition
PXIe-5122 is used to capture fast analog waveforms with high sampling rates, making it suitable for analyzing transient signals and high-frequency events.

2. Communication Signal Analysis
It is applied in analyzing communication signals, including modulation characteristics, signal integrity, and timing behavior in digital and RF systems.

3. Semiconductor Testing
The module is used to measure and analyze signals from ICs, mixed-signal devices, and electronic components during validation and production testing.

4. Power Electronics Testing
PXIe-5122 captures voltage and current waveforms in power systems, helping engineers analyze switching behavior, ripple, and transient responses.

5. Automated Test Equipment (ATE)
Integrated into automated test systems, it provides high-speed waveform measurement for consistent and repeatable production testing.

6. Research & Development Applications
Widely used in laboratories for waveform analysis, circuit validation, and experimental measurements requiring high-speed data acquisition.

7. Fault Detection and Debugging
Engineers use the module to identify signal anomalies, glitches, and timing issues in electronic systems for troubleshooting and optimization.
