PXI-6513

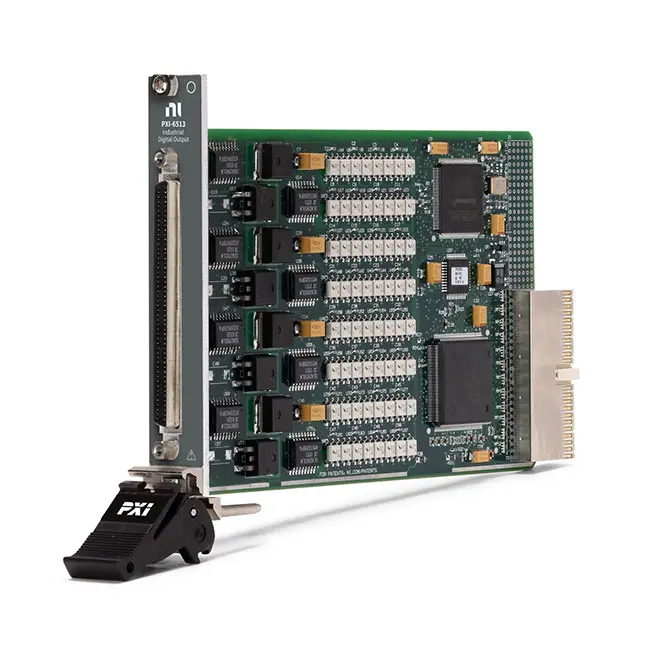

The PXI‑6513 is an industrial digital output interface with eight banks of isolated channels. With programmable power-up states, you can configure the initial output states in software to ensure safe operation when connected to industrial actuators. If a computer or application fault occurs, the PXI‑6513 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions.

Part Number(s): 778971-01

Applications and Use Cases of PXI-6513

The PXI-6513 Industrial Digital Input Module is an industrial digital input module for PXI systems, designed to provide high-channel-count digital input acquisition with electrical isolation. It enables reliable monitoring of industrial signals while protecting the system from electrical noise and high-voltage transients.

1. Industrial Digital Signal Acquisition
PXI-6513 is widely used to acquire digital input signals from sensors, switches, relays, and PLC outputs in industrial environments.

2. Electrical Isolation and Noise Immunity
With built-in isolation, the module protects the PXI system from voltage spikes, electrical noise, and ground loops, ensuring stable operation.

3. Factory Automation and Process Monitoring
It is suitable for monitoring machine status, production line signals, and industrial process conditions in automated systems.

4. Equipment Status and Fault Detection
PXI-6513 can monitor ON/OFF states, alarm signals, and fault conditions from equipment, enabling real-time diagnostics.

5. Hardware-in-the-Loop (HIL) Simulation
The module is used in HIL systems to acquire digital inputs from real or simulated hardware, supporting system validation and testing.

6. Automated Test Equipment (ATE)
It is commonly integrated into automated test systems to monitor digital outputs from devices under test (DUT).

7. Research, Development, and System Integration
PXI-6513 is widely used in R&D labs and engineering environments for system integration, testing, and validation of digital interfaces.
