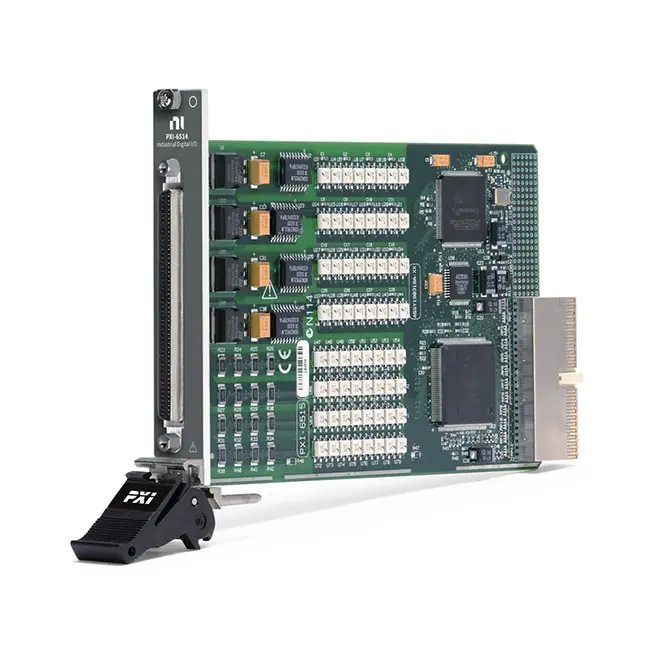

PXI-6514

The PXI‑6514 is an industrial digital I/O interface with eight banks of isolated channels. With programmable power-up states, you can configure the initial output states in software to ensure safe operation when connected to industrial actuators. If a computer or application fault occurs, the PXI‑6514 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. Programmable input filters eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter.

Part Number(s): 778965-01

Applications and Use Cases of PXI-6514

The PXI-6514 Industrial Digital Output Module is an industrial digital output module for PXI systems, designed to provide reliable, high-voltage digital output signals with electrical isolation. It is optimized for driving industrial loads and control signals, making it suitable for automation, control, and test environments.

1. Industrial Digital Output Control
PXI-6514 is widely used to control external devices such as relays, solenoids, actuators, and PLC inputs through digital output signals.

2. Electrical Isolation and System Protection
With built-in isolation, the module protects both the PXI system and connected equipment from voltage spikes, electrical noise, and ground loops.

3. Factory Automation and Process Control
It is suitable for controlling machines, production lines, and automated processes in industrial environments.

4. Equipment Control and Switching
PXI-6514 can be used to switch devices ON/OFF, trigger operations, and manage control signals in real time.

5. Hardware-in-the-Loop (HIL) Simulation
The module is ideal for HIL systems where digital outputs are required to simulate real-world control signals and interact with hardware systems.

6. Automated Test Equipment (ATE)
It is commonly used in automated test systems to control test sequences, trigger instruments, and manage DUT operations.

7. Research, Development, and Industrial Integration
PXI-6514 is widely used in R&D labs and engineering environments for system prototyping, control development, and industrial interface integration.
