PXI-6733

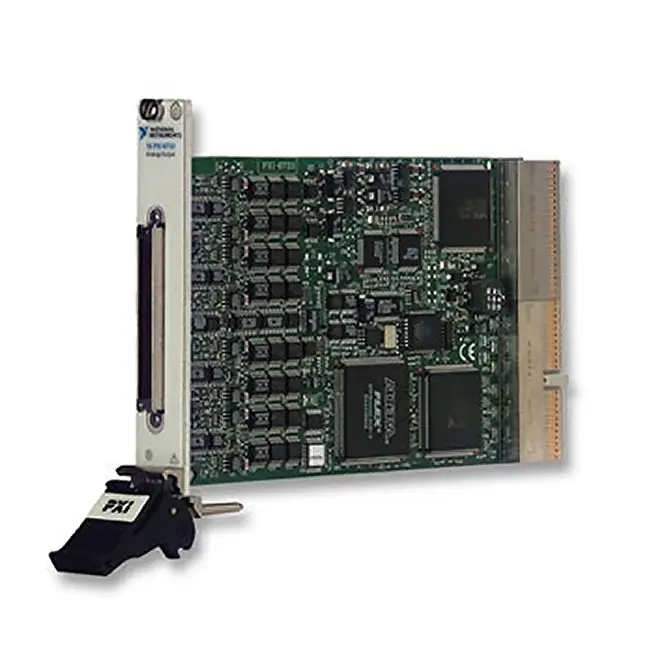

The PXI‑6733 is a high-speed analog output device designed to deliver simultaneous, multichannel updates for control and waveform output applications, such as stimulus-response tests (including acoustic distortion testing) and simulation (such as three-phase power simulation). In addition, the device provides eight 5 V TTL/CMOS digital I/O lines; two 24‑bit, 20 MHz counter/timers; and digital triggering and external clocking capabilities. The PXI‑6733 can replace several kinds of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed arbitrary waveform generators, and function generators. You can control each data point for each channel to define common waveforms, such as square, sine, or sawtooth, as well as complex waveforms.

Part Number(s): 778512-01

Applications and Use Cases of PXI-6733

The PXI-6733 Analog Output Module is a multifunction analog output module for PXI systems, designed to deliver multiple synchronized voltage outputs with high resolution and reliable update rates. It is ideal for applications requiring precise multi-channel signal generation and control.

1. Multi-Channel Analog Signal Generation
PXI-6733 is widely used to generate multiple synchronized analog voltage signals, making it suitable for systems that require coordinated output across many channels.

2. Sensor Simulation and System Emulation
It can simulate outputs from various sensors and physical systems, allowing engineers to test and validate measurement equipment and control systems without real-world inputs.

3. Industrial Automation and Process Control
With multiple output channels, PXI-6733 is suitable for driving actuators, controlling industrial processes, and providing control signals in automated systems.

4. Hardware-in-the-Loop (HIL) Simulation
The module is commonly used in HIL systems to generate real-time analog signals that replicate real-world conditions, enabling system validation and control algorithm testing.

5. Electronic Device and Circuit Testing
PXI-6733 provides precise voltage outputs for testing electronic circuits, embedded systems, and components under controlled conditions.

6. Power Electronics and Motor Control Testing
It can be used to generate control signals for testing power electronics, inverters, and motor drive systems.

7. Research, Development, and Prototyping
PXI-6733 is widely used in R&D labs, universities, and engineering environments for system prototyping, experimental setups, and multi-channel signal generation.
