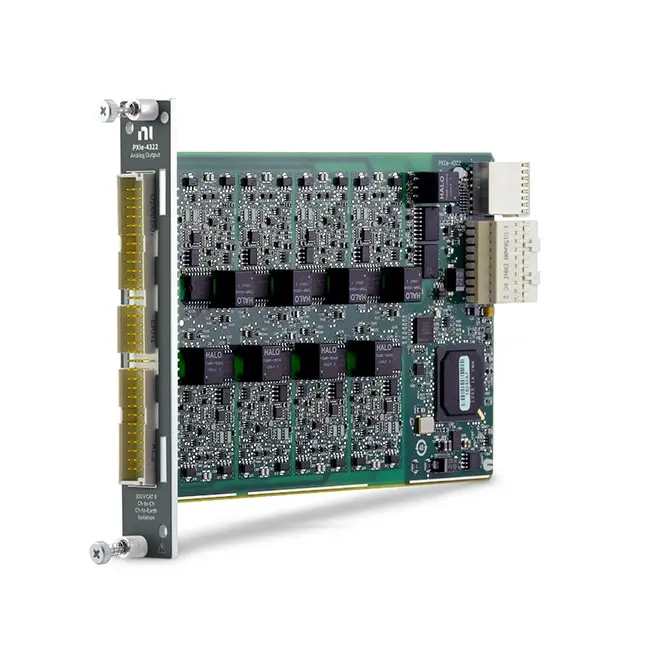

PXIe-4322

The PXIe‑4322 is a channel‑to‑channel isolated analog output module with integrated signal conditioning. The device provides accurate, simultaneous dynamic voltage and current outputs. By combining signal conditioning and D/A converters on the same device, the PXIe‑4322 isolated analog output module delivers a smaller footprint and higher measurement performance. In current mode, the module operates in all four quadrants, so you can both sink and source current. Isolation and higher voltage and current outputs make this module ideal for automotive applications.

Part Number(s): 782878-01

Applications and Use Cases of PXIe-4322

The PXIe-4322 Precision Voltage Output Module is a high-precision analog output module for PXI Express systems, designed to deliver accurate, stable, and low-noise voltage signals. It is optimized for applications that require high-resolution signal generation and precise control, making it suitable for calibration, simulation, and control system testing.

1. Precision Voltage Signal Generation
PXIe-4322 is widely used to generate highly accurate and stable voltage signals for testing, calibration, and simulation purposes in laboratory and industrial environments.

2. Sensor Simulation and Calibration
It can simulate sensor outputs such as thermocouples, RTDs, strain gauges, and other analog signals, making it ideal for calibrating measurement systems and validating sensor interfaces.

3. Industrial Control System Testing
The module is suitable for testing control systems by providing precise analog outputs to simulate real-world operating conditions and evaluate system response.

4. Hardware-in-the-Loop (HIL) Simulation
PXIe-4322 is often used in HIL systems to generate analog signals that replicate real-world inputs, enabling engineers to validate control algorithms and system behavior.

5. Electronic Device and Circuit Testing
It is used to provide controlled voltage inputs for testing electronic circuits, components, and embedded systems under different operating conditions.

6. Research and Laboratory Applications
PXIe-4322 is widely adopted in research labs and universities for experiments that require high-accuracy signal generation and stable analog outputs.

7. Calibration Systems and Metrology
Due to its high accuracy and stability, it is suitable for calibration setups and metrology applications where precise voltage output is critical.
