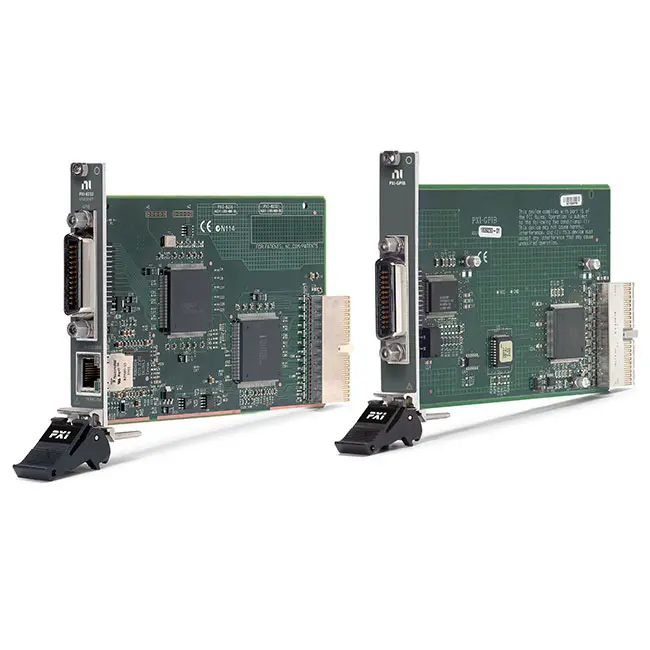

PXI-8232

The PXI‑8232 combines a high-performance GPIB controller and a Gigabit Ethernet port into a single-slot module. You can use this module to integrate non-PXI instruments into a PXI system. The PXI‑8232 takes advantage of the Intel 82540EM Gigabit Ethernet controller. The 1,000 Mbit/s Gigabit Ethernet transfer rate provides a substantial performance increase over the Fast Ethernet transfer rate while remaining compatible with 10BASE‑T and 100BASE‑TX Fast Ethernet networks. You also can use the Ethernet port on the PXI‑8232 as an EtherCAT master, which is programmed with the NI‑Industrial Communications for EtherCAT software in LabVIEW. This module includes a license for the NI‑488.2 driver software, providing maximum reliability for connecting to third-party instruments with GPIB.

Applications and Use Cases of PXI-8232

The PXI-8232 MXI-Express Interface Module is a PXI module designed to connect a PXI chassis to a host PC via MXI-Express (PCIe over cable). It enables high-speed communication, remote system control, and modular system expansion, making it suitable for flexible and scalable test and measurement architectures.

1. Remote PXI System Control
PXI-8232 allows a host computer to control a PXI chassis externally, enabling flexible system placement and centralized control.

2. High-Speed Data Communication
Provides PCIe-based data transfer over cable, ensuring high bandwidth and low latency between the PXI system and the host PC.

3. Test System Expansion
Used to connect multiple PXI chassis to a single controller, expanding system capacity and measurement channels.

4. Modular Measurement Systems
Enables separation of measurement hardware and computing resources, improving flexibility and system scalability.

5. Automated Test Equipment (ATE)
Widely used in ATE systems for controlling multiple instruments and synchronizing test operations.

6. Industrial & Production Testing
Applied in manufacturing environments for high-throughput testing and real-time data acquisition.

7. Laboratory & R&D Applications
Used in research labs to build flexible, high-performance measurement systems.
