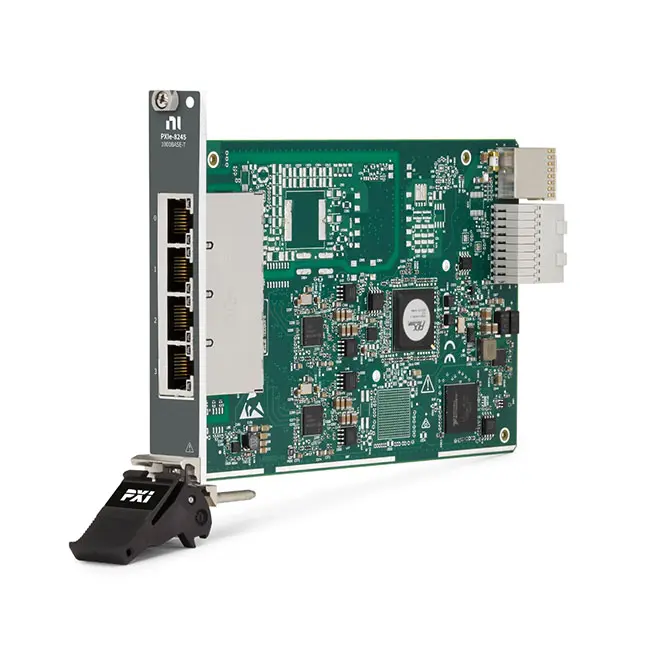

PXIe-8245

The PXIe-8245 supports Ethernet-based communication between PXI hardware and external instruments and devices. This PXI Ethernet Interface Module includes four RJ45 10/100/1000BASE-T Ethernet interface ports in a single-slot PXI Express module.

Applications and Use Cases of PXIe-8245

The PXIe-8245 MXI-Express Controller Module is a PXI Express MXI-Express controller module designed to connect a PXI/PXIe chassis to a host PC via high-speed PCIe over cable. It enables low-latency control, high-throughput data transfer, and scalable system architecture, making it ideal for high-performance and expandable test systems.

1. Remote PXI System Control
PXIe-8245 allows a host computer to control a PXI chassis externally, enabling flexible system placement and centralized management.

2. High-Speed PCIe Data Transfer
Provides PCIe-based communication over cable, supporting high-bandwidth and low-latency data transfer for demanding applications.

3. Multi-Chassis Expansion
Used to connect multiple PXI chassis to a single controller, enabling scalable systems with increased channel count.

4. Modular Test & Measurement Architecture
Separates measurement hardware from the computing system, improving system flexibility and maintainability.

5. Automated Test Equipment (ATE)
Widely used in ATE systems for centralized control of multiple PXI instruments and synchronized testing.

6. Industrial Production Testing
Applied in manufacturing environments for high-speed data acquisition and large-scale automated testing.

7. Research & Laboratory Systems
Used in R&D labs to build scalable, high-performance measurement and control systems.
