PXIe-4147
$31,569.00
Item details
Current Sensitivity: 100 fA
Includes Auxiliary Power: –
Number of SMU Channels: 4
Voltage Range: -8 V to 8 V
SourceAdapt: Yes
Max DC Sink Power: 24 W
Max DC Source Power: 24 W
DC Current Range: -3 A to 3 A
Pulsed Current Range: –
Bus Connector: PXI Express
15
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

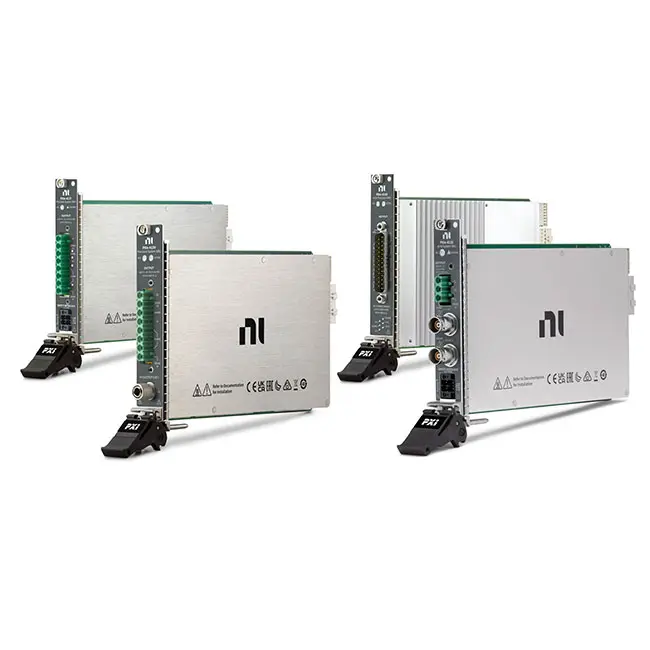

NI PXIe-4147 PXI Source Measure Unit
PXIe, 4-Channel, ±8 V, 3 A Precision PXI Source Measure Unit
The PXIe-4147 is a 4-channel source measure unit (SMU) ideal for high-pin-count applications. It features 4-quadrant operation, and each channel has integrated remote four-wire sensing for accurate measurements. The sample rate of the PXIe-4147 can reduce measurement times, capture transient device characteristics, and help you perform current-voltage (I-V) characterization of devices-under-test (DUTs). With a high-speed sequencing engine, you can synchronize SMUs with each other or with other instruments such as switches or high-speed digital test modules. Additionally, you can tune the PXIe-4147 response to any load to achieve optimum responses with maximum stability and minimum transients using SourceAdapt technology.
Applications and Use Cases of PXIe-4147
The PXIe-4147 Precision Source Measure Unit (SMU) is a PXI Express high-voltage source measure unit (SMU) designed for precision voltage/current sourcing and measurement with extended voltage range. It combines high accuracy, low noise, and high compliance voltage, making it ideal for high-voltage device characterization and advanced test systems.
1. High-Voltage Precision SMU Testing
PXIe-4147 can source and measure higher voltages with precision, making it suitable for testing high-voltage electronic components.
2. Semiconductor Device Characterization
Used for testing diodes, transistors, ICs, and high-voltage devices by analyzing I-V curves, breakdown voltage, and leakage current.
3. Insulation & Breakdown Testing
Ideal for evaluating insulation materials and determining breakdown voltage in electrical systems.
4. Automated Test Equipment (ATE)
Integrated into ATE systems for high-voltage parametric testing and device validation.
5. Power Electronics & Energy Systems
Used in testing power circuits, converters, and energy systems requiring high-voltage operation.
6. Research & Laboratory Applications
Applied in labs for high-voltage experiments, device research, and system validation.
7. Production & Quality Testing
Used in manufacturing environments for reliable and repeatable high-voltage testing.
Part Number(s): 786888-01
