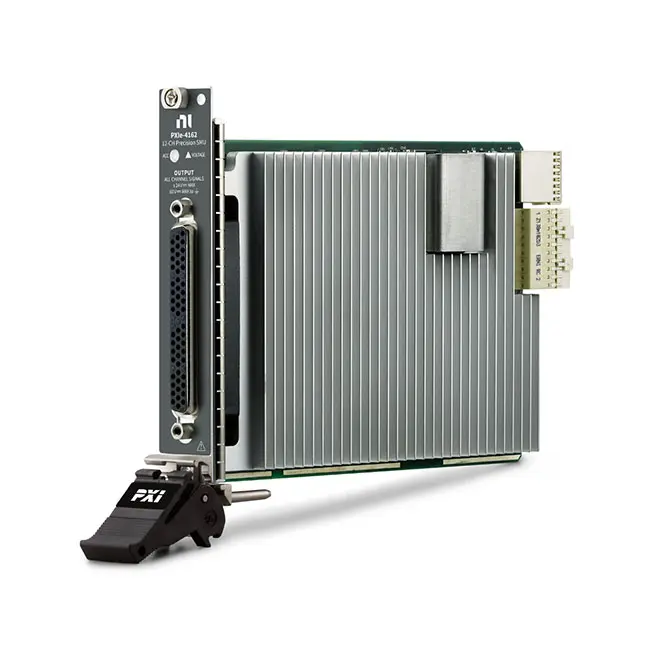

PXIe-4162

The PXIe-4162 is a high-precision, high-density source measure unit (SMU) with 12 identical SMU channels. This module features 4-quadrant operation, integrated remote (4 wire) sensing in each channel for accurate measurements, as well as analog-to-digital converter technology to help you perform high-precision measurements. It also features guard terminals to remove the effects of leakage currents and parasitic capacitances. Additionally, the PXIe-4162 can maximize stability and measurement accuracy with SourceAdapt technology, which you can use to tune the transient response to match the characteristics of any load. The PXIe-4162 is ideal for a broad range of mixed-signal integrated circuits (ICs) in semiconductor production test.

Applications and Use Cases of PXIe-4162

The PXIe-4162 Precision Source Measure Unit (SMU) is a PXI Express multi-channel source measure unit (SMU) designed for precision voltage/current sourcing and measurement. It offers multiple independent channels, high accuracy, and low noise, making it ideal for parallel testing and high-throughput automated measurement systems.

1. Multi-Channel Precision SMU Testing
PXIe-4162 provides multiple SMU channels that can simultaneously source and measure voltage/current, enabling efficient parallel testing of devices.

2. Semiconductor Device Characterization
Widely used for testing ICs, diodes, transistors, and other components by analyzing I-V characteristics, leakage current, and performance parameters.

3. Automated Test Equipment (ATE)
Integrated into ATE systems for parametric testing, increasing throughput by testing multiple DUTs simultaneously.

4. Multi-Rail Power Testing & Sequencing
Supports coordinated control of multiple voltage rails, ideal for complex electronic systems requiring controlled startup and shutdown.

5. Low-Level Signal Measurement
Capable of accurately measuring small currents and voltages, suitable for precision electronic testing.

6. Battery & Power Device Testing
Used for analyzing power circuits and battery systems with precise control and measurement capabilities.

7. Research & Laboratory Applications
Used in labs for system development, circuit validation, and precision experiments.
