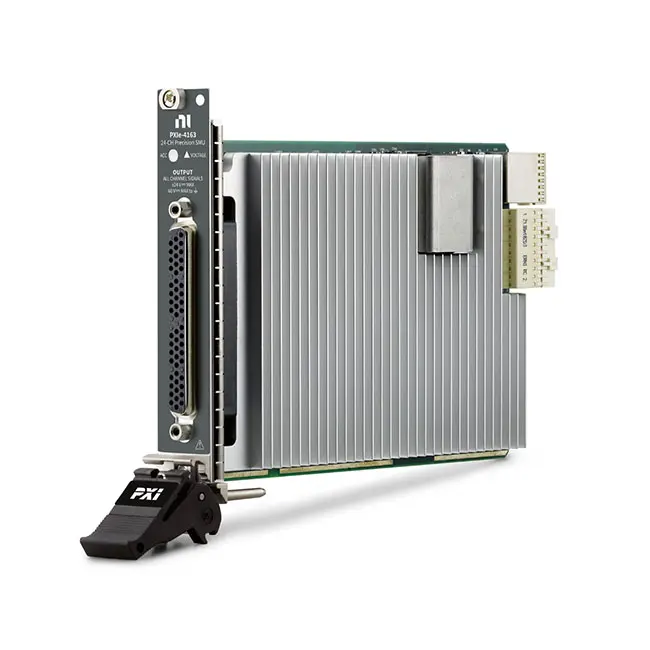

PXIe-4163

The PXIe-4163 is a high-precision, high-density source measure unit (SMU) with 24 identical SMU channels. This module features 4-quadrant operation, integrated remote (4 wire) sensing in each channel for accurate measurements, as well as analog-to-digital converter technology to help you perform high-precision measurements. Additionally, the PXIe-4163 can maximize stability and measurement accuracy with SourceAdapt technology, which you can use to tune the transient response to match the characteristics of any load. The PXIe-4163 is ideal for a broad range of mixed-signal integrated circuits (ICs) in semiconductor production test.

Applications and Use Cases of PXIe-4163

The PXIe-4163 Precision Source Measure Unit (SMU) is a PXI Express multi-channel source measure unit (SMU) designed for high-power voltage/current sourcing and precision measurement. It combines multiple independent channels, high output capability, and accurate measurement, making it ideal for power electronics testing and high-throughput automated systems.

1. Multi-Channel High-Power SMU Testing
PXIe-4163 provides multiple independent SMU channels, enabling simultaneous testing of several DUTs or multiple nodes within a device.

2. Power Electronics & Device Characterization
Widely used for testing power devices such as MOSFETs, IGBTs, DC-DC converters, and power modules by analyzing I-V characteristics and efficiency.

3. Automated Test Equipment (ATE)
Integrated into ATE systems for parallel testing, improving throughput in semiconductor and electronics manufacturing.

4. Battery & Energy Device Testing
Used for testing batteries, fuel cells, and energy storage systems, including charge/discharge analysis and performance evaluation.

5. Multi-Rail Power Sequencing & Validation
Supports controlled power-up/down sequences for complex systems requiring multiple voltage rails.

6. Industrial & Production Testing
Applied in manufacturing environments for high-volume testing and validation of electronic products.

7. Research & Advanced Development
Used in R&D labs for developing and validating high-power electronic systems and circuits.
